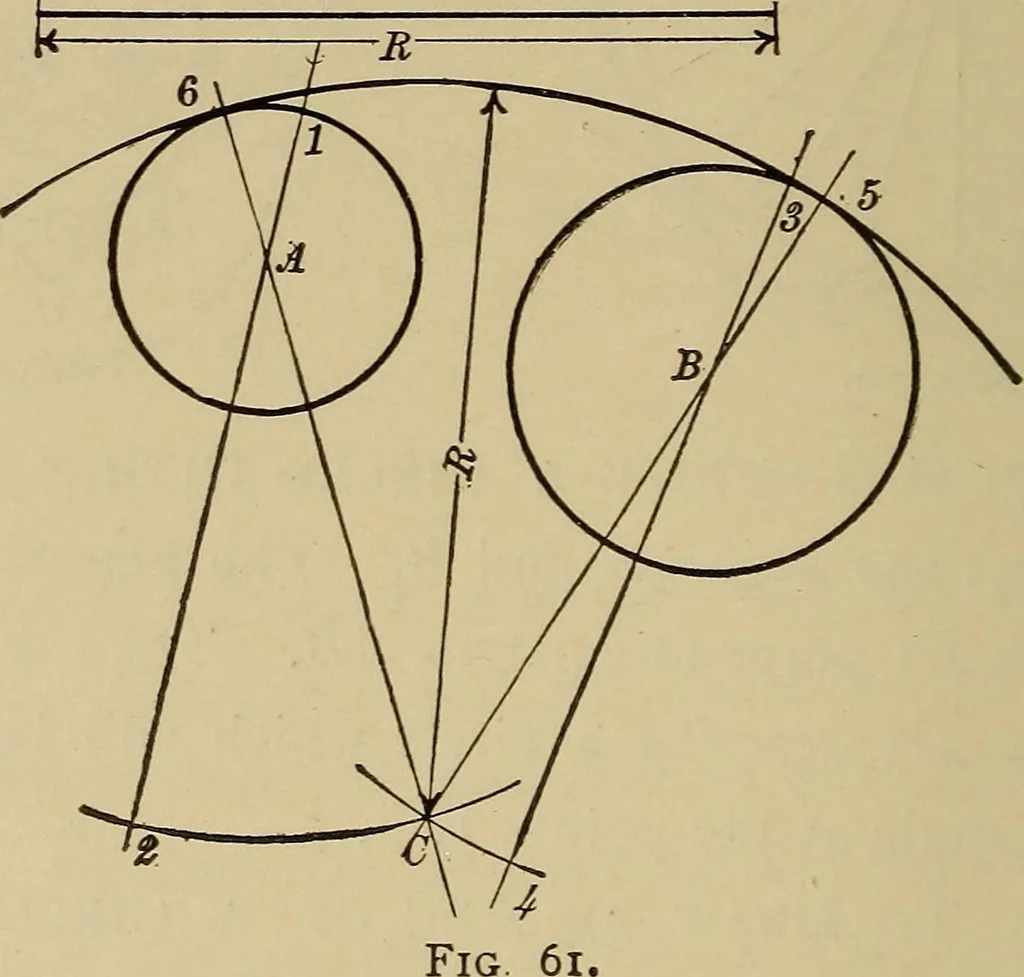

Prob. 43.Fig. 61. Fig. 60. To Draw an Arc of a Circle of Given Radius R tangent to two Given Circles A and B … when the Arc includes the Circles.—Through A and Bdraw convenient diameters and extend them indefinitely. On GEOMETRICAL DRAWING. 17 these measure off the distances 1-2 and 3-4, each equal inlength to the given radius R. Then with center A and radiusA2y center B and radius £4, describe arcs cutting…
