Mechanical drawing for plumbers; a concise, comprehensive and practical treatise on the subject of mechanical drawing (1910)
Starbuck, R. M. (Robert Macy), 1844-1927 · New York, The Norman W. Henley publishing co. · leaf 66

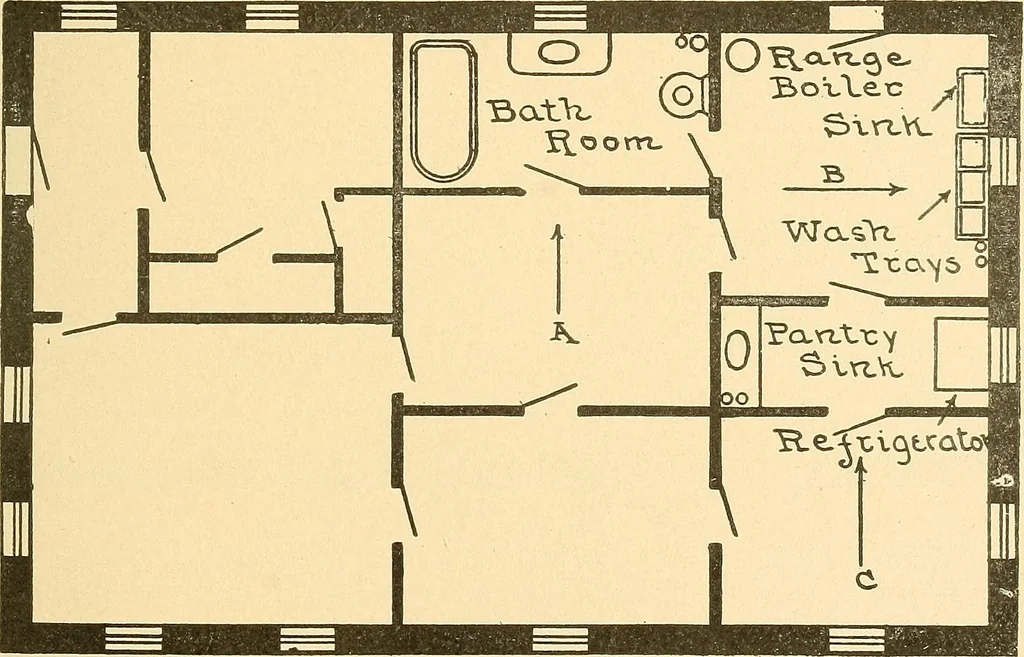

a three-flat apartment house. As each of thethree floors are identical in their layout,the one floor plan is all that is required the work with as great clearness as is tobe desired. For instance, if a side view of the entiresystem were to be made, that is, a viewtaken by looking in the direction… … YlGvTQ, in this line, as it answers for all. In ad-dition Fig. 71 shows the cellar plan forthe same work, the drainage pipes onlybeing shown, however, as in this workwe have no use for other details. A careful study of the floor plan willshow that the arrangement of the plumb-ing is such that no…
