Hutton, Frederick Remsen, 1853-1918 · New York, J. Wiley & sons; London, Chapman & Hall, limited · leaf 131

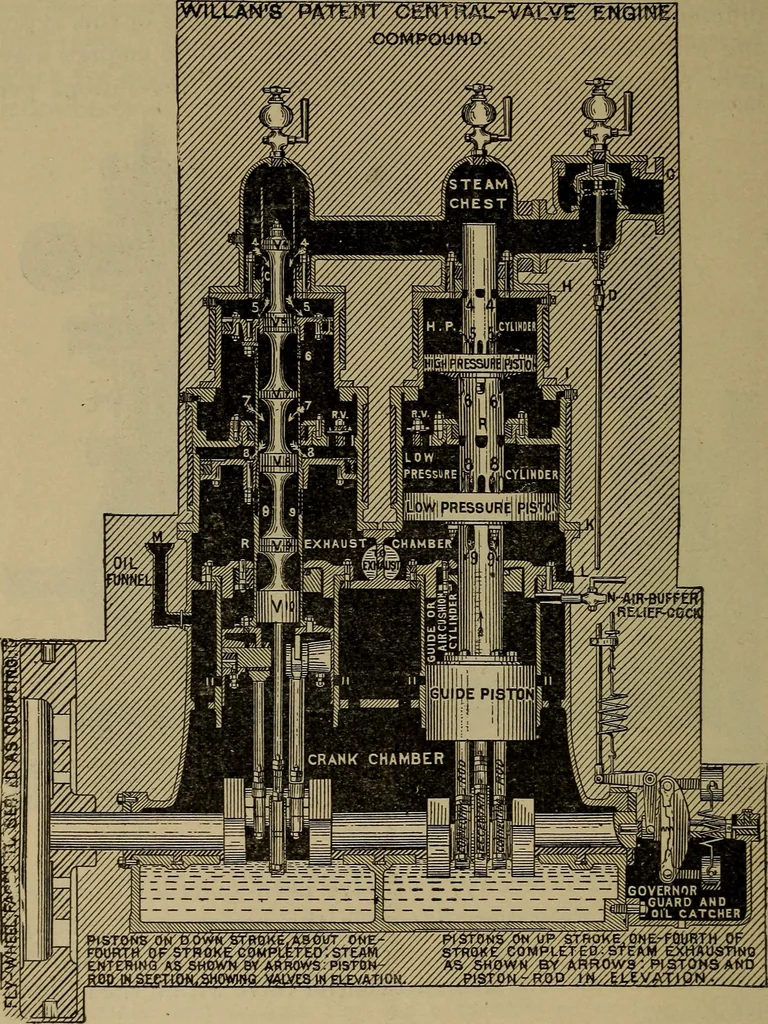

to couple the armature of electricdynamos directly to the engine-shaft. The Willans engine-section shows the characteristic central valve within the hollowpiston-rod. 44. Expansive and Non-expansive Working of Engines.—The third subdivision of engines under the classification nowbeing examined is… … Fig. 65. of the rectangle shown in Fig. 66 represent the stroke of thepiston in a cylinder on any convenient scale of feet, and the EX G EVES CLASSIFIED BY THEIR USE OE STEA. 81 height of the rectangle represent on any convenient scale thepressure in pounds per square inch due to the elastic…
Mechanical engineering · Steam power plants
