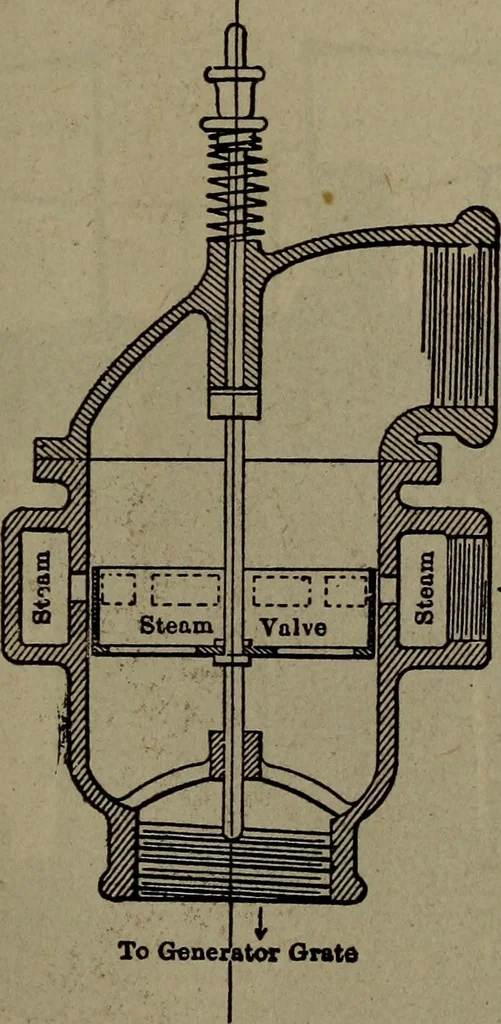

ion type,and consists of the usual generator, scrubber, and equalizingtank. The vaporizer for supplying steam to the fuel bed TTie Gas Producer 757 is an Tipper extension of the generator^ but is located sothat the hot gases from the fuel bed do not impinge square-ly on the bottom of the vaporizer.… … got Ate Inlet _8.teaia~ Inlet Fig. 321steam regulator and within an equalizing chamber formed in its cover,separated from the drum by a rubber diaphragm. A small vent in the cover allows air to pass in or outslowly, forming a sort of brake on the fluctuations of pres-sure within the drum. The…
