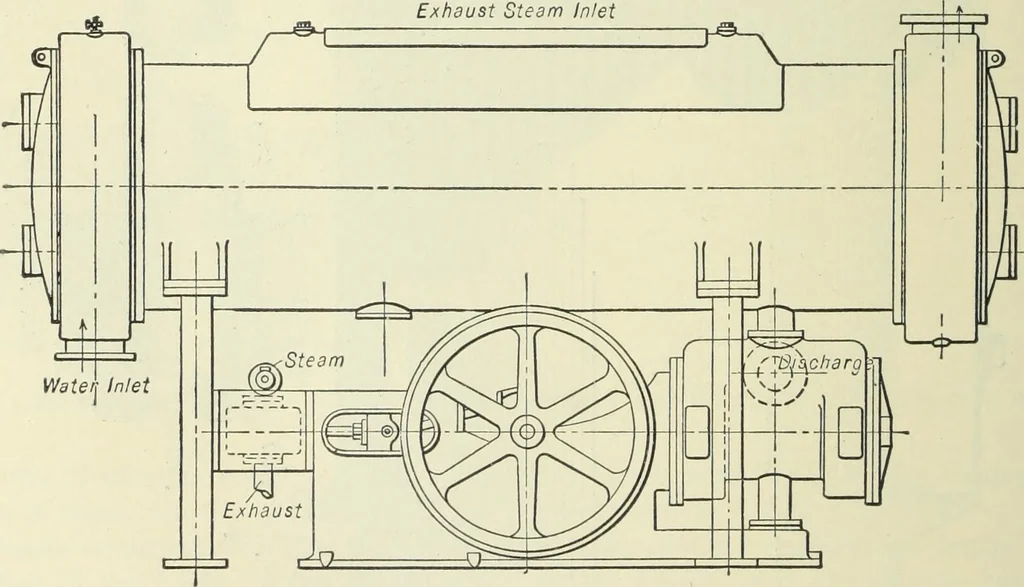

CONDENSATION PUMP SUCTION STEAM BAFFLE PLATE SECTION THROUGH a-B CIRCULATING WATES OUTLET CONDENSATION PUMP SUCTIONS ELEVATION EXHAUST STEAM INLET Fig. 26. Well-Designed Cylindrical Condenser. Exhaust Steam Inlet Water Outlet … Fig. 27. Surface Condenser with Wet Vacuum Eeciprocating Pump, for Medium-Size Installations. air, collected at suitable points for removal, and returned to the steam generator at the maximumpractical temperature. Circulating water should pass through the condenser with least friction, deposit a…
