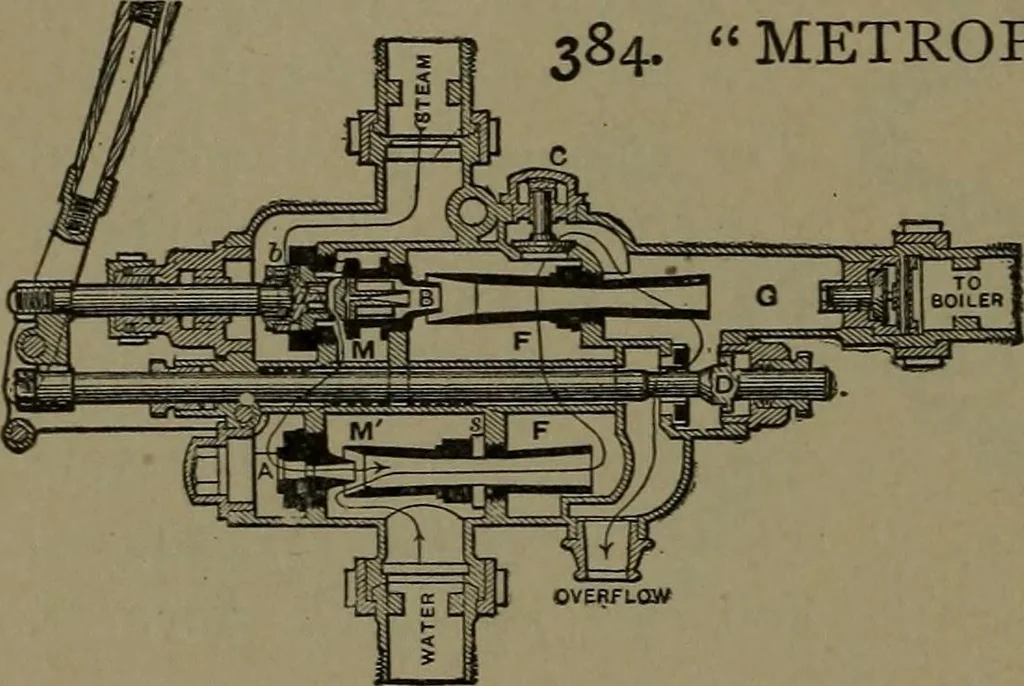

ble for reg-ulation by a screw and yoke, F. A movement of the handle opens the injection nozzle, and closes the lift nozzle ports. METROPOLITAN DOUBL&TUBEINJECTOR.—The first move-ment of the handle opens thefirst section of a double-beatvalve at b^ and gives steam tothe lifting nozzle A; the…
