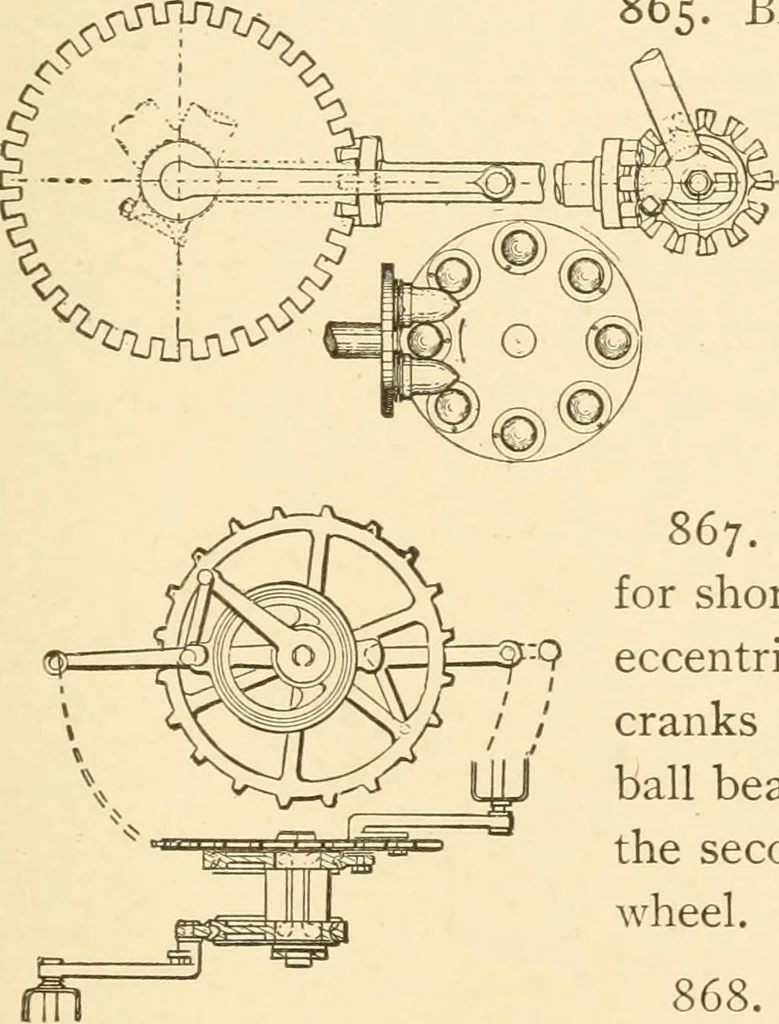

863. ELECTRIC TRICYCLE, Bar-row pattern. The single forward wheel isswivelled to the vehicle frame for steeringand is also the driving wheel. It has a spurwheel on the inside of the rim in which theelectric-motor pinion meshes. The motorswings with the steering-wheel frame, and isconnected to the… … 865. BICYCLE GEAR.—Transmission by fore and aft shaft with pin-tooth gearing. Sagar model. 866. Pin-tooth wheel andpinion. 867. BICYCLE CRANK.—A devicefor shortening the up-crank stroke. Theeccentrics are fixed to the frame. Thecranks and eccentric straps revolve onball bearings, carrying by link…
