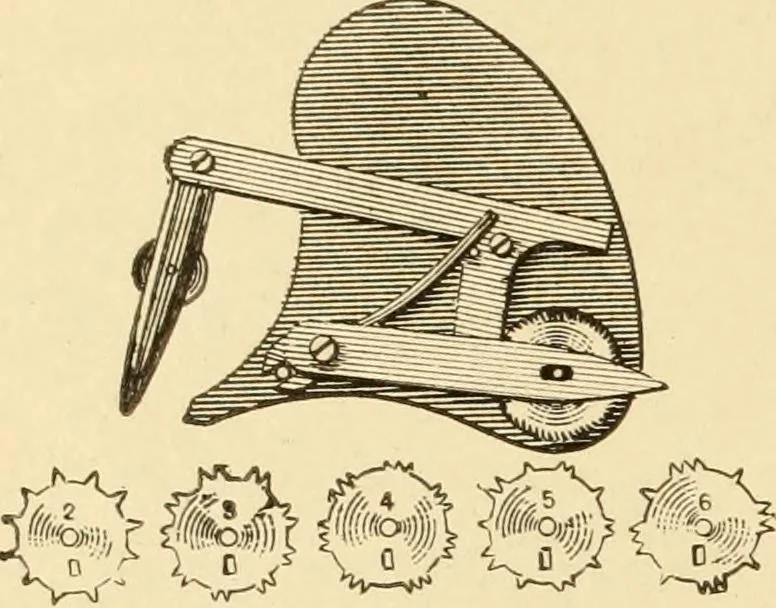

in contactwith the lever R and linked tothe index lever L, its endholding a pencil that marksthe variation of pressure on fhe graduated paper on a drum driven by a clock. 370 DRAUGHTING DEVICES. 1531/z. DOTTING INSTRU-MENT.—One of the toothedwheels for the kind of dotting re-quired is placed on the…
