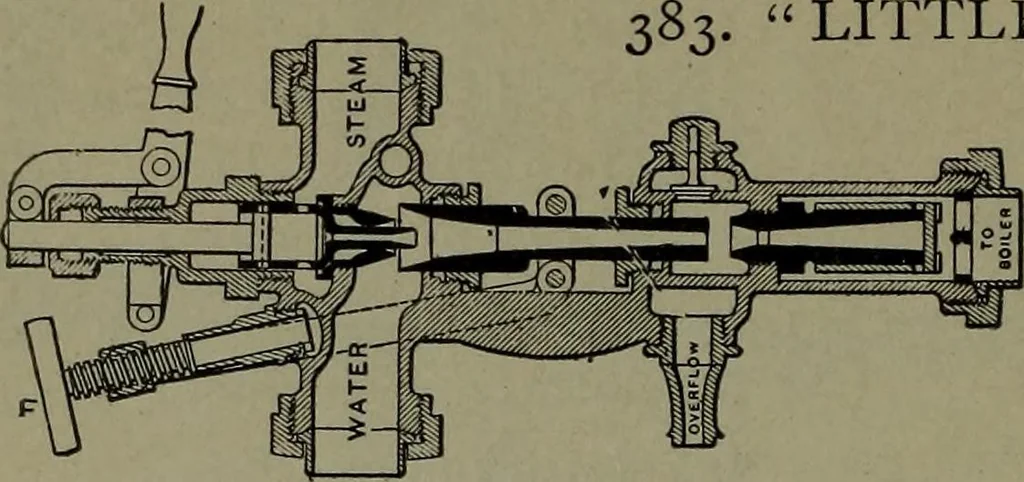

is estab-lished check valve C closes,followed by check valve D. 381. PARK INJECTOR.—A double ,tube in tandem, inwhich the handle has twomovements to operate thelift and force nozzles. Aself-lifting check valve gov-erns the overflow. 382. SELLERS RESTARTINGINJECTOR.—In this model all the tubesare… … LITTLE GIANT LOCOMOTIVEINJECTOR. —In thismodel the lift is started whenthe separate steam valve isopened. The forcing or com-bining tube is movable for reg-ulation by a screw and yoke, F. A movement of the handle opens the injection nozzle, and closes the lift nozzle ports. METROPOLITAN…
