Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 407

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 407

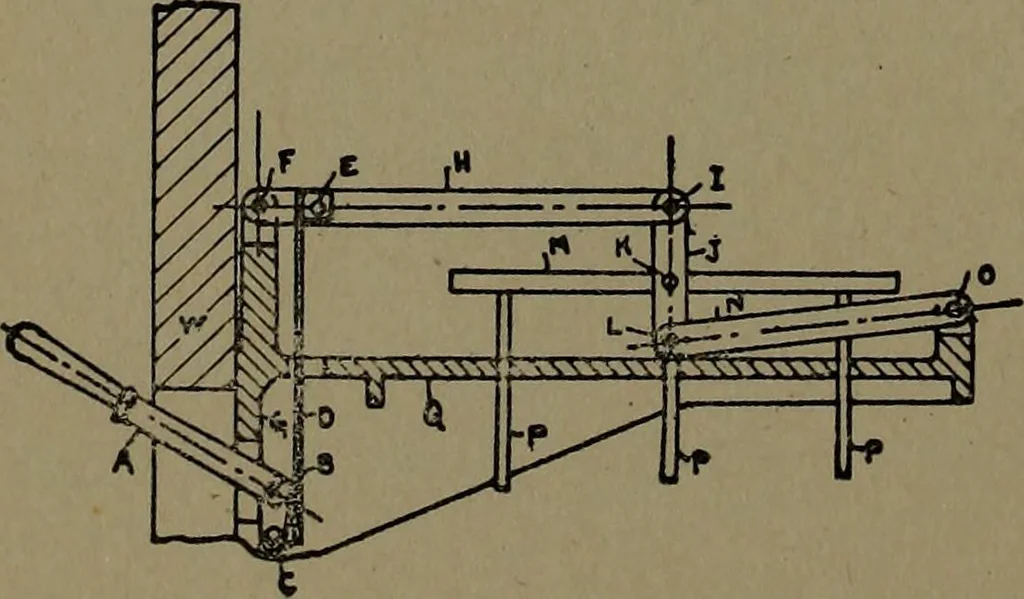

C=G = D 2 D = E F= 1661. OIL SWITCH MOVEMENT WITH THREELEVERS AND TWO LINKS.—Levers A, H, and N are con-nected to links D and / and frame M. ^ is a lever with a handlepivoted to frame Q, at B, and connected to link D at C. Link D, connected to lever A at C,passing through frame Q, isconnected to… … STRAIGHT LINE MOVEMENTS. 401 connected to lever N at L, and is also connected to moving frameM at K, which frame M carries contacts on extensions at P, P, P.Lever A^^ connected to link / at L, is pivoted to frame Q at O.This movement gives a straight line motion to the frame M.IV is a wall upon…

Mechanical movements
