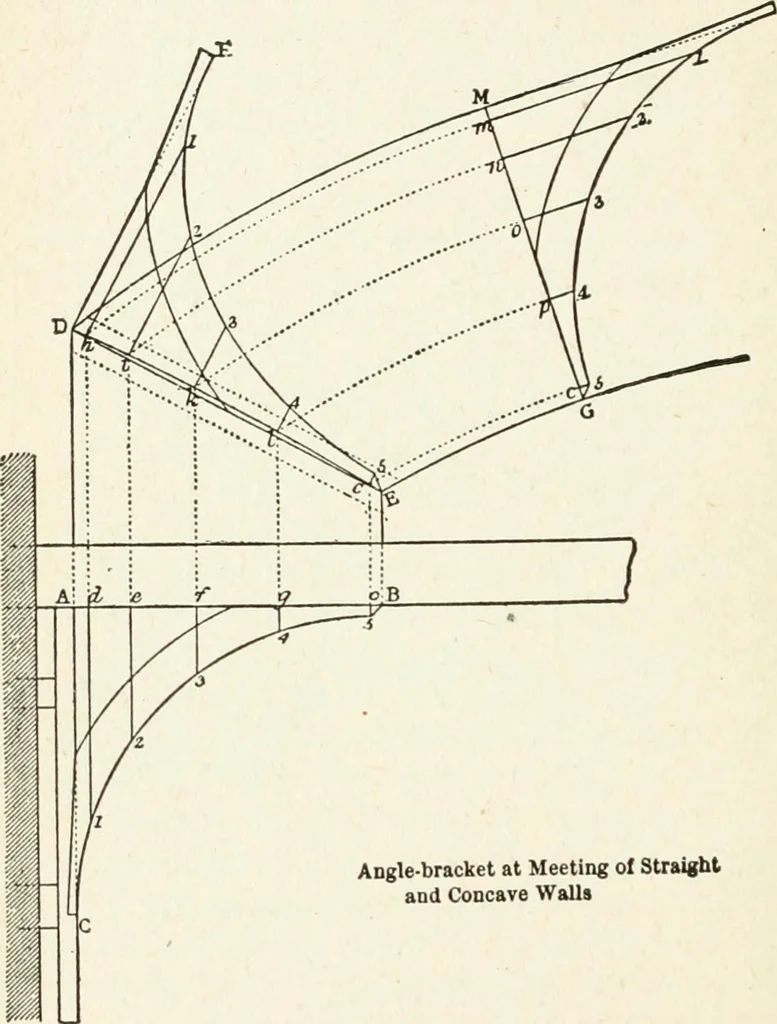

■Angle-bracketB for Moulded Cornices Fig. 20. To find the ang-le-bracket at the meeting of a concavewall with a straight wall. Let A D E B (Fig. 21) be the plan of the bracketingon the straight wall, and D M GE the plan on the cir- 156 MODERN CARPENTRY cular wall, CAB the elevation on the straight… … Angle-bracket at Meeting of Straightand Concave Walls Fig. 21. C B, G IT into the same number of equal parts; throughthe divisions of C B draw the lines CD, 1 d h, 2 e i, &c.,perpendicular to A B and through those of G H draw PRACTICAL SOLUTIONS 157 the parellel lines, part straight and part…
