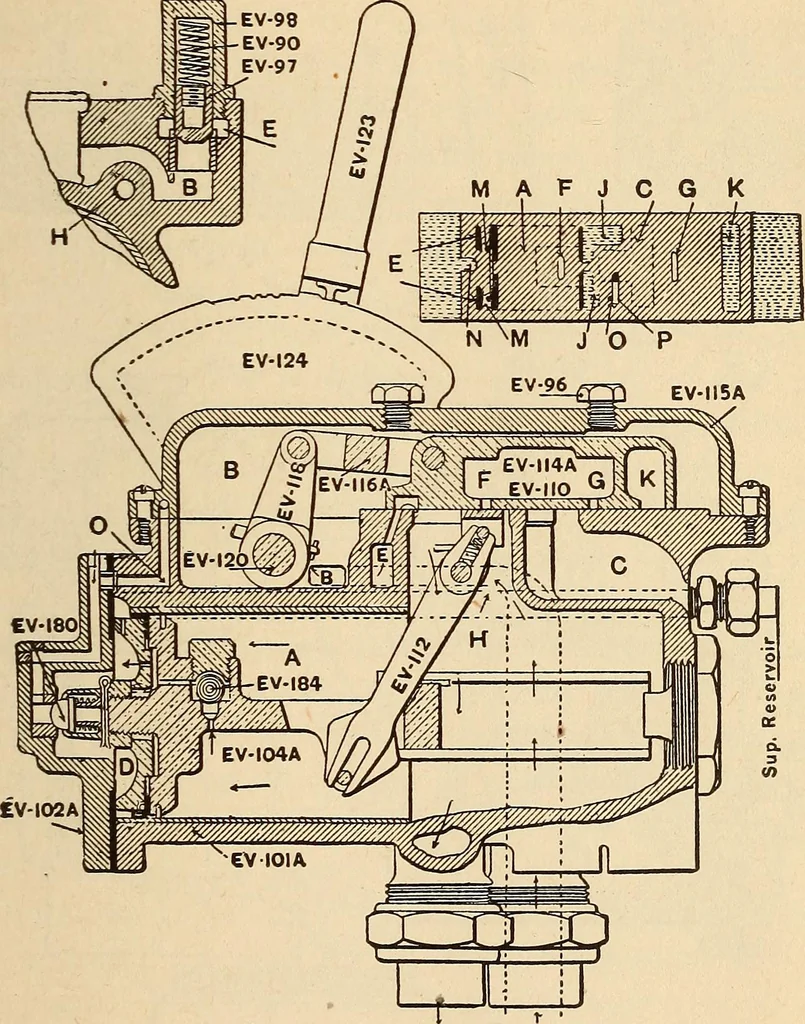

AUTOMATIC AIR BRAKES 593 studying this view of the face of the main slide valve,it should be remembered that it is equivalent to look-ing directly through the top of the valve, and that … Train Pipe Main Reservoir Figure 250New York Engineers Brake Valve, Running Position the slanting lines represent the face of the main slidevalve, while the dotted horizontal lines represent theslide valve seat. It will be noticed that port K inthe main slide valve extends across nearly the whole…
