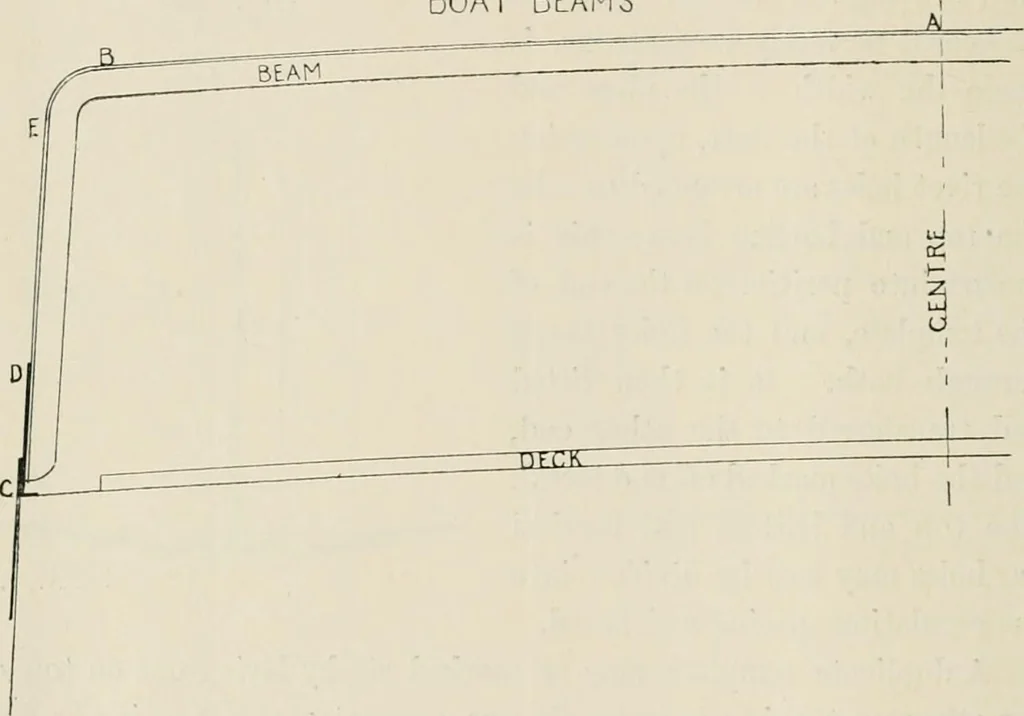

eight A at the centreline, such that yon have comfortable head room at the sides below theweb of the beam. Draw in camber line A B and connect it at Ewith side, C D produced. A skeleton wood mould is made to the lineC D B A, showing the correct length and the centre. Cross battensto keep it in form… … only extend to the deck erections, in other cases they are butted atthe centre, or a little to the sides. In any case a half mould ought toanswer the purpose, if the centre is correctly marked for each beam. POOP ROUND AND TURTLE BACK. 85 CHAPTER IX. Pooj) Round: Obtaining Lines and…
