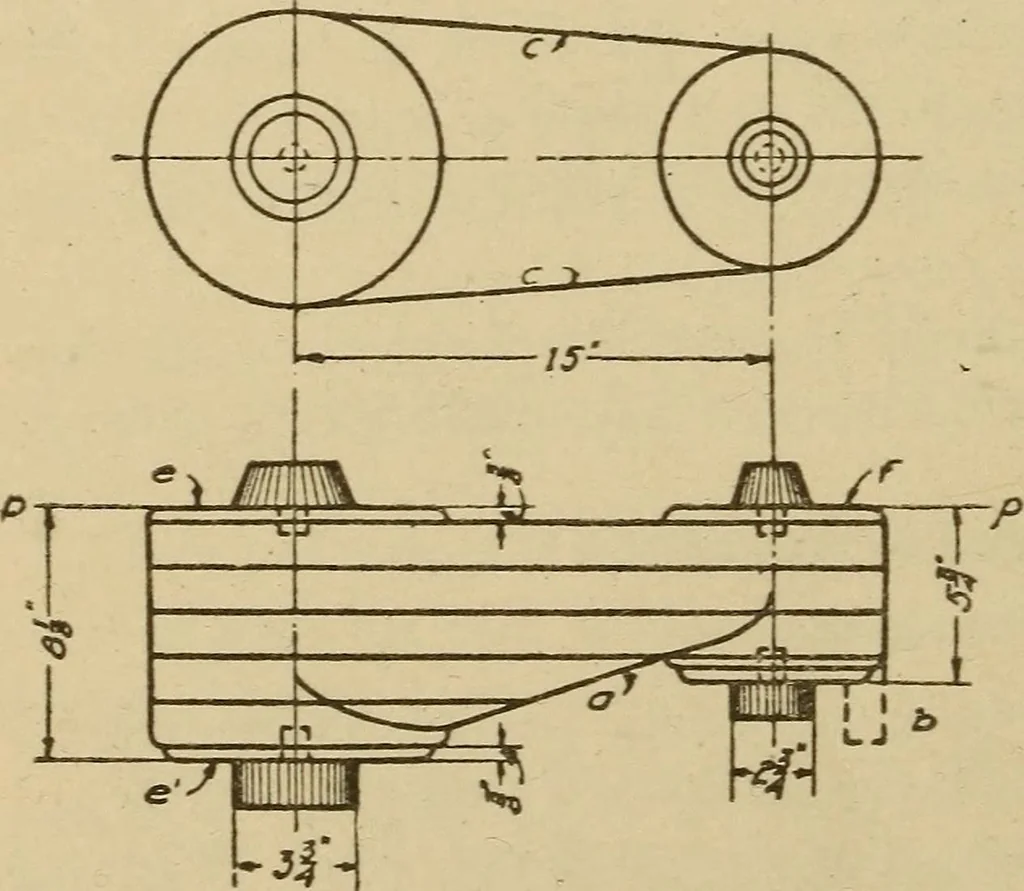

ing the line c. This stock h may be removed with achisel after all band-sawwork is completed. Havethe band-saw table tiltedwhen sawing to line c soas to produce a slightdraft—I inch in 12 inches—fo the sides of the pat-tern. Turn a nowel and copecore print 3| inches andalso 2f inches in… … Fig. 193. Diagram of Pattern for Crank, Fig. 192 PATTERN MAKING 113 the boss, fasten the bosses to the faceplate with four |-inch wirenails; now turn them to the diameters required by the drawingand bevel the edge about 30 degrees. Nail and glue on thebosses, being sure the holes are in line with…
