Perspective and geometrical drawing : adapted to the use of candidates for second and third-class teachers' certificates (1887)
McGuirl, Thos. H. (Thomas H.) · Toronto, Ont. : W. Briggs · leaf 125

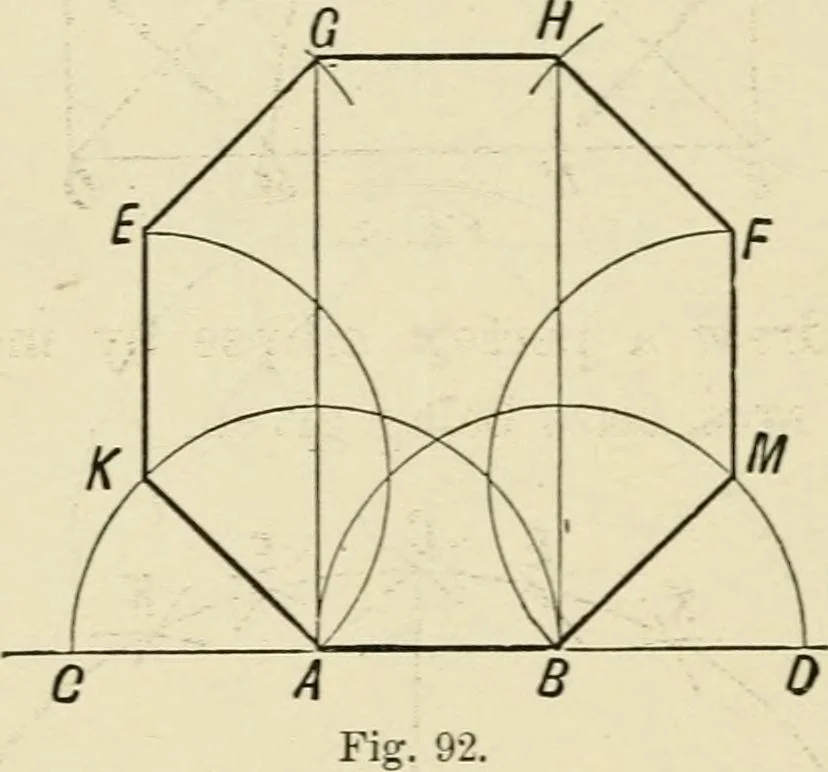

Fig. 91. 122 DRAWING. Let AB be the given line ; with centre A and distance ABdescribe arc; with centre B and distance BA, describe arccutting at C; join CA, CB. With centre C and distance CA,describe circle cutting in D, B and A ; join DC and produceto E; produce AC to G and BC to F; join AE, EF,… … Let AB be the given line; produce it both ways, anddescribe the semicircles CKB and AMD. Erect a perpen-dicular at A and at B; bisect the right angles CAG and DBHby AK and BM, respectively, and erect perpendiculars KEand MF, at K and M, respectively. With centre K and dis-tance KA describe arc EA…
Geometrical drawing · Perspective
