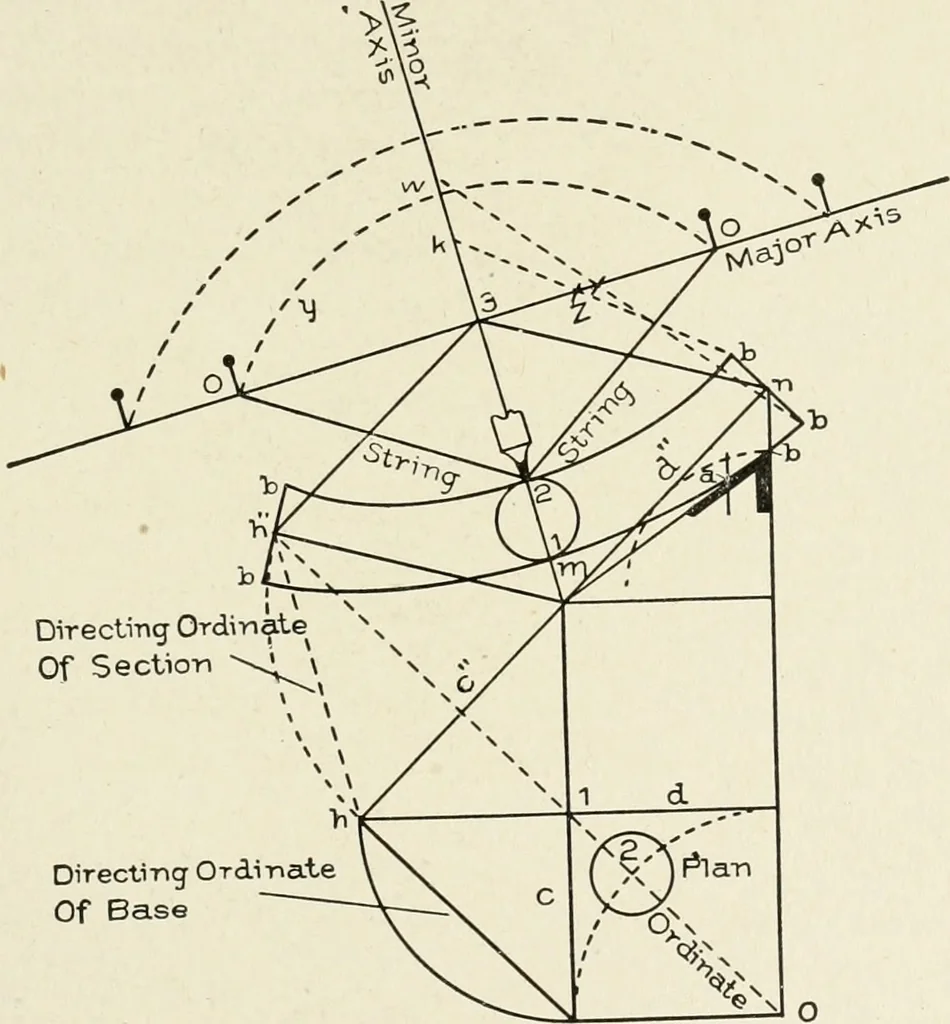

evel. From a, draw a lineto a, square to the ground line. Place the dividers on a; extend to 328 STAIR-BUILDING 65 touch the pitch of tangents, and turn over as shown to m; connect mto a. The bevel at m will be the only one required for this wreath,but it will have to be applied to both ends, owing… … Directing Ordinate \ Of Section \* \ \ o Directing OrdinateOf Base Fig. 119. Laying Out Curves on Pace-Mould with Pius and String. case the bottom tangent a is to be a level tangent. Probably thiscondition is the most commonly met with in wreath construction atthe present time. A small curve is…
