Practical instructor and reference book for locomotive firemen and engineers: a practical treatise .. (1916)
Lockhart, Charles F. (Charles Fulton), b. 1872 · New York, The Norman W. Henley publishing co. · leaf 249

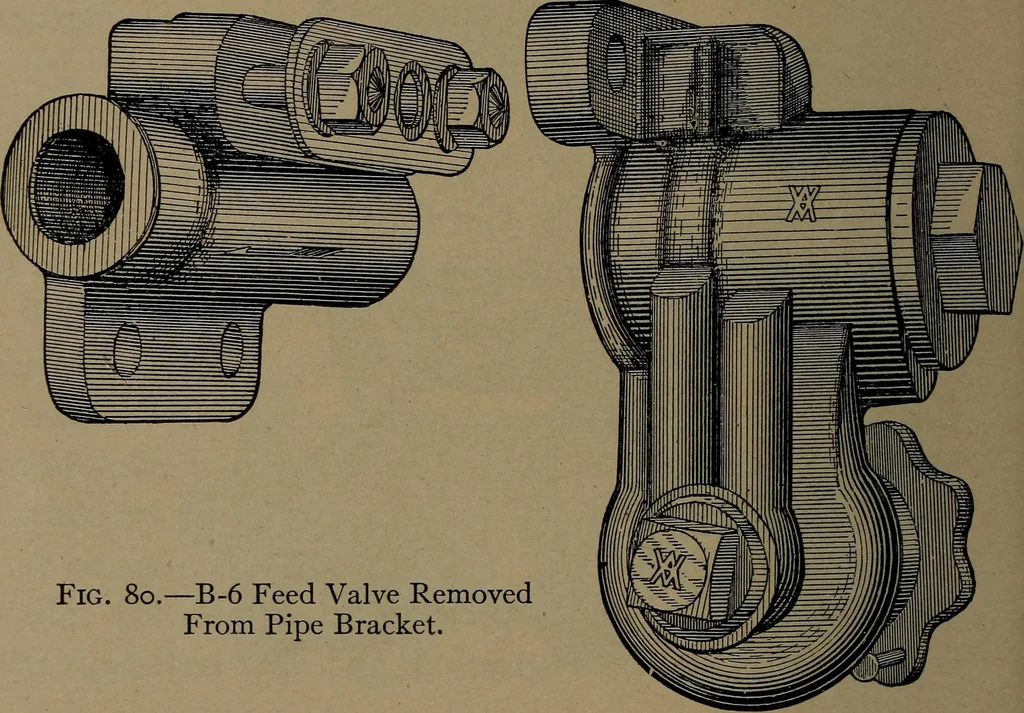

ply Valve Piston; 9, Supply Valve; 10, SupplyValve Spring; 11, Regulating Valve Cap; 12, RegulatingValve; 13, Regulating Valve Spring; 14, Diaphragm;15, Diaphragm Ring; 16, Diaphragm Spindle; 17, Regu- 246 THE B-6 FEED VALVE lating Spring; 18, Spring Box; 19, Upper Stop; 20, LowerStop; 2i? Stop… … Fig. 80.—B-6 Feed Valve RemovedFrom Pipe Bracket. and its spring 6. The regulating part consists of theregulating valve 12, regulating valve spring 13, diaphragm14, diaphragm spindle 16, regulating spring 17, andregulating hand wheel 22. 666. The operation of this valve is as follows:—Main…Locomotives
