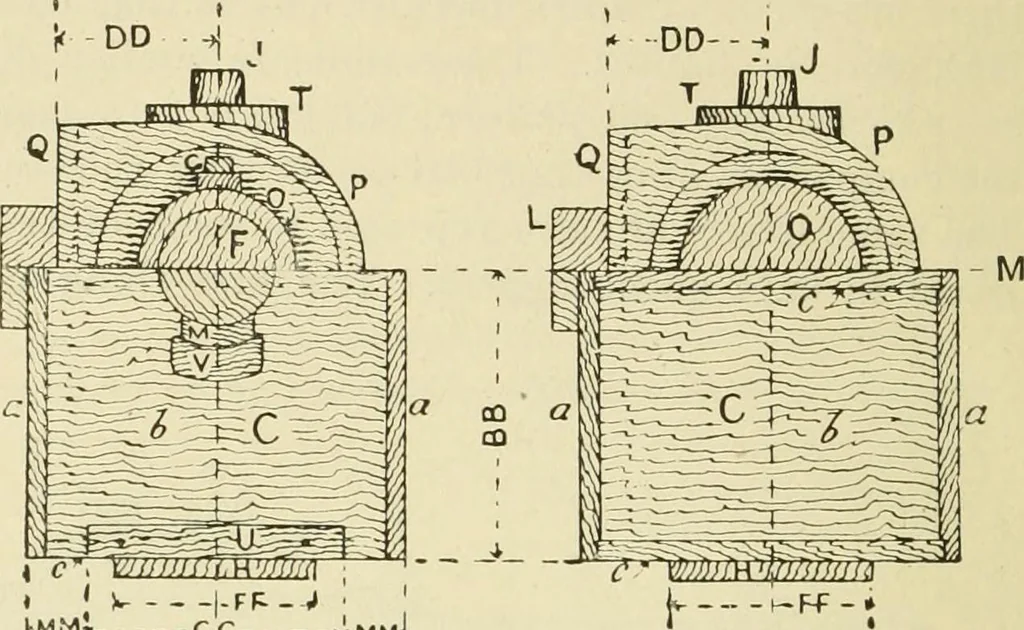

Fig. 41. Cylinder Pattern—Outside View. able in the pattern figures is that the foot F is notpresent in the pattern at all, but that a large print C,Figs. 41, 42, 43, formed by boxing up, is substitutedfor it. The inner and outer curves of the foot aretherefore imparted with cores. Another point is… … 4 r-, fyf/j/JlNM/JIIM i < v I-FP--V • VMMi CC >MMJ Fig. 42, Cylinder Pattern-Front View. Fig. 43. Cylinder Pattern—CrossSection A-A, Fig. 41. with the belt uppermost. There are also sundry coreprints, E, F, G, H, J, K, L, corresponding in positionwith holes in the castings. Another matter is…
