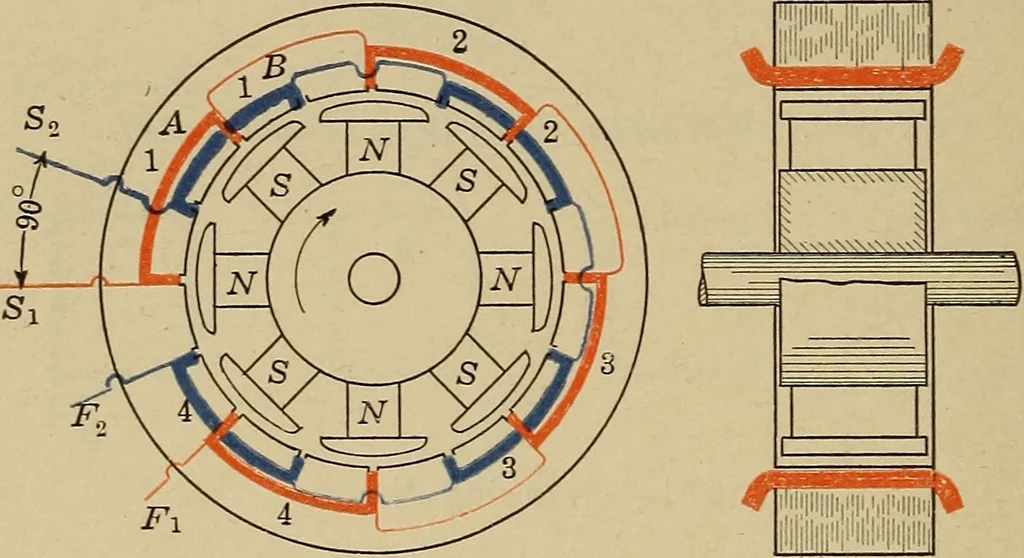

sirable in practice to show thecoils and connections by means of a developed diagram such asFig. 251; this diagram shows what would be obtained if thewinding in Fig. 250 were split at xy and then flattened out on aplane; the two diagrams are lettered similarly. The voltage between the terminals Si… … Fig. 253.—Two-phase alternator. shown in Fig. 253. This machine has twice as many conductorsas that in Fig. 250, but if the coils A and B are connected inseries, it will be found that the voltage of the machine has notbeen doubled but has been increased only 41 per cent. It was pointed out on page…
