Radford's architectural drawing : complete guide to work of architect's office, drawing to scale--tracing--detailing--designing --classic order of architecture. A complete and thorough course, clearly written and beautifully illustrated; suited alike to individual study and class instruction (1912)
Radford, William A., 1865- · Chicago, The Radford Architectural Company · leaf 94

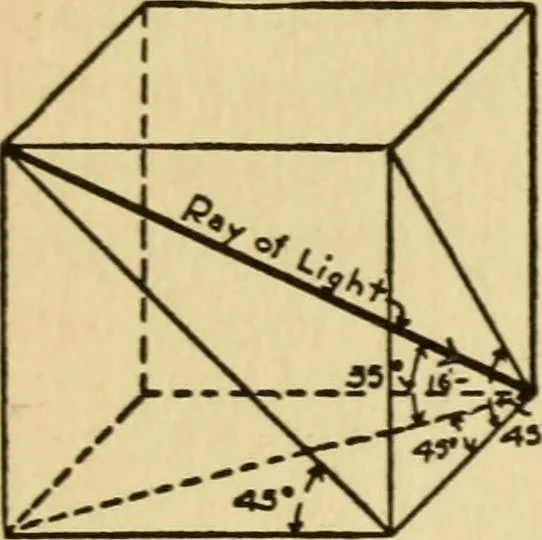

oulder, or sloping downward and ARCHITECTURAL DRAFTING 261 backward. This is the diagonal of a cube. Theprojections of this diagonal in the vertical planeand in a horizontal plane aie at 45 degrees, whilethe true angle of the diagonal with the plane isslightly less than 35 degrees 16 minutes. If…
