Radford’s portfolio of details of building construction; a remarkable and unique collection of full-page plates, accurately drawn and reproduced to exact scale. Complete details for every style of interior trim, including special built-in features. (1911)
Radford, William A., 1865-, Johnson, Bernard L, Rawson, Charles P · Chicago, Ill., The Radford architectural company · leaf 94

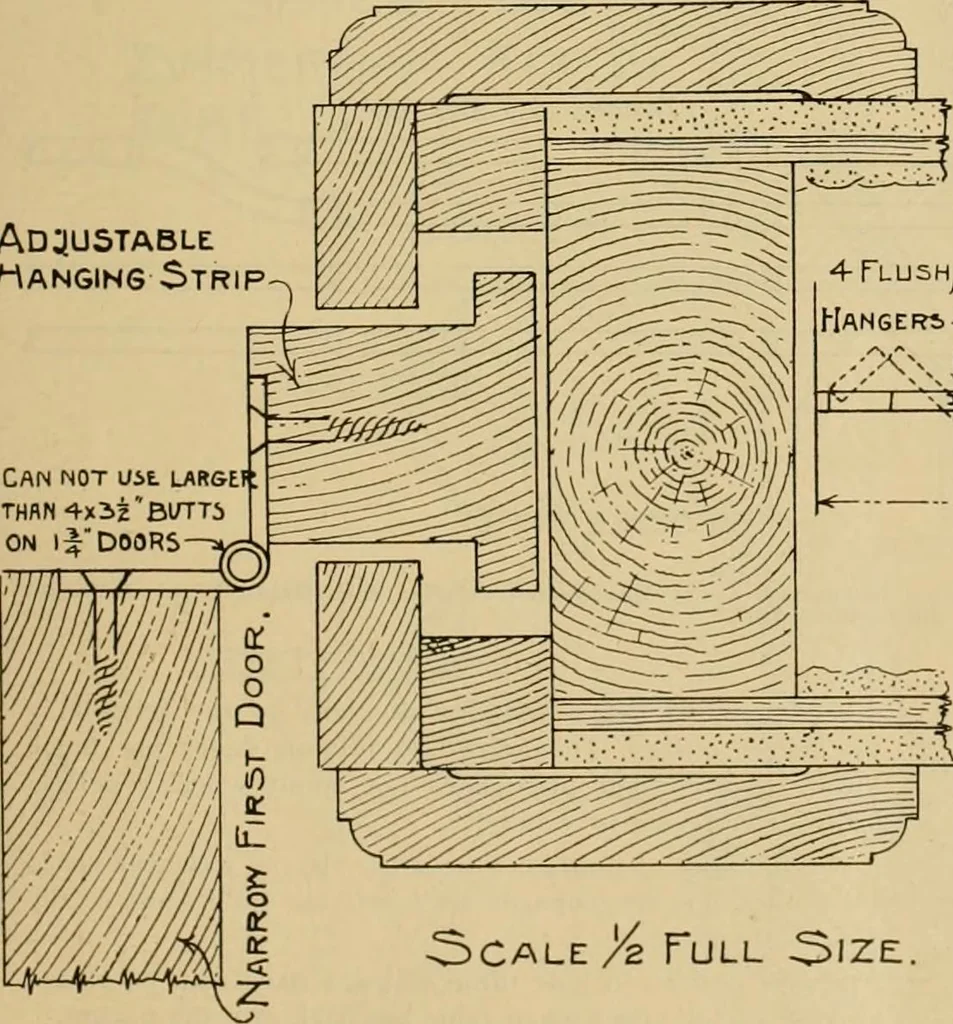

ith a soffit closing up the slot in the top jamb and bolts,lock, knob and flush cup handle. Now, to obtain a good workmanlike job of folding parti-tion doors, the writer suggests the use of the adjustablehanging strip as shown in detail to left. If the doors shrink the flush bolts can be shot into… … 4 Flush Bolts aj Borrof^-No Bolts aj Top,. yt^ ^-Sliding Door Lockand cup escutcheons. -- 15O i3CAl_t :^ tguALi 1- 0 • Accordion Foldinfc Doors—Direction-* for OrderLiig:Tracic .Sliould be as Long as Opening i.s Wide. Brackets!>houId be Placed 2 to ZV^ Feet Apart. One Hanger isRequired for…
