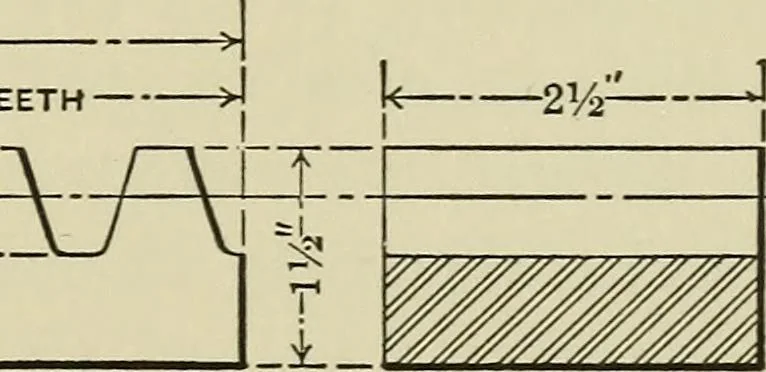

until it will make a goodpush fit for a standard plug gage of the size given. It will benoted that all the dimensions needed by the workman who turnsthe blank are appended to the figure, while those needed by theworkman who cuts the teeth are given in tabular form. The side view of the gear on the… … RACK 1 WANTED —MACH. STEEL FINISH ALL OVER DATA FOR CUTTING DIAMETRAL PITCH 3 WHOLE DEPTH OF TOOTH 0.7190 ADDENDUM 0.3333 THICKNESS OF TOOTH 0.5236 NO. OF CUTTER 1 Machinery Fig. 8. Example of Properly Dimensioned Rack Drawing necessary in standard gearing to show the shape of the teeth, sothe side…
