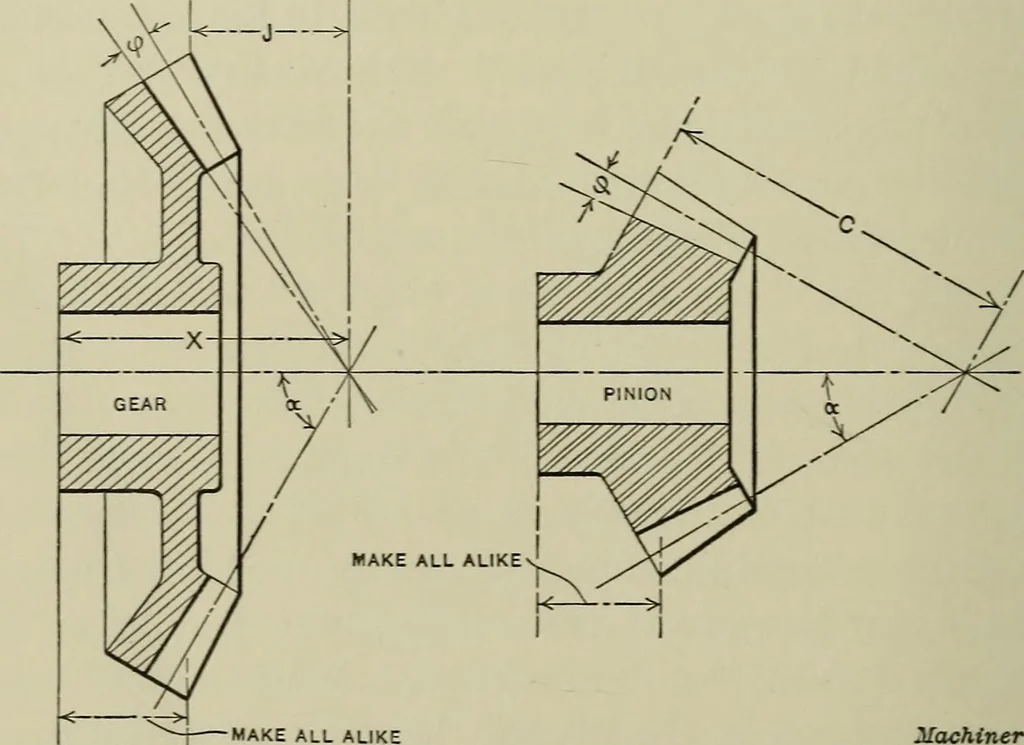

.4 for the pinion, and 247 for the gear, giving a No. i andNo. 7 cutter respectively. These cutters are marked special,owing to the fact that they are 20 degrees involute instead of 14Jdegrees. They would be special under any circumstances, how-ever, since the ^ddth of face for these gears (4… … -MAKE ALL ALIKE Machinery Figs. 7 and 8. Additional Dimensions for Gears to be cut by theTemplet Planing Process or the Gleason Generating Machine more than ^ the pitch cone radius. For this reason cuttersthinner than the standard would have to be used. In bevel pinions of the usual form, such as…
