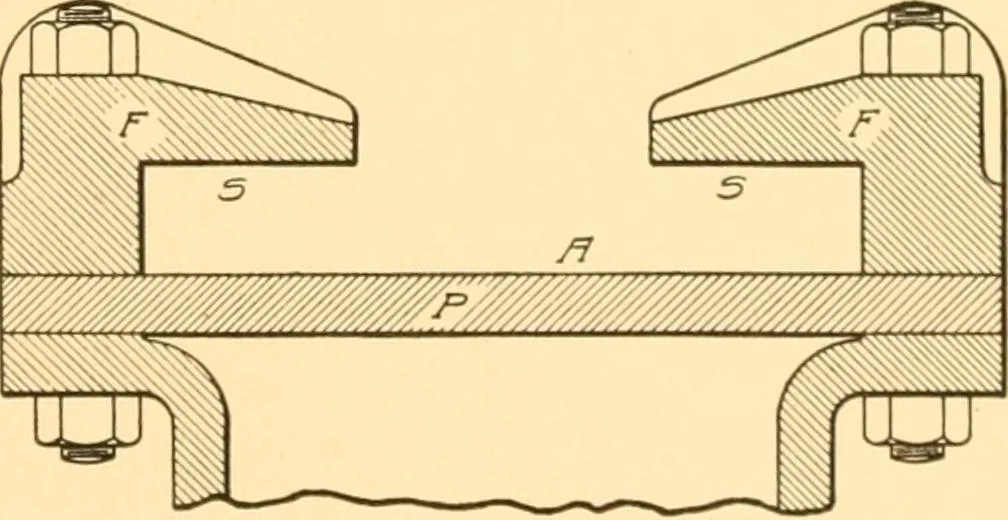

Fig. 59. Sectional View of Marine Engine Cylinder,Piston and Steam Ports … Fig. 60. Type of Marine Crosshead Guide 82 STEAM ENGINES more, each cylinder of an engine has a separate crankshaft. Theseseparate shafts are bolted together by flanges, as shown in Fig. 61.The dotted lines in this figure show how, in large shafts, the centeris sometimes made hollow. This is done…
