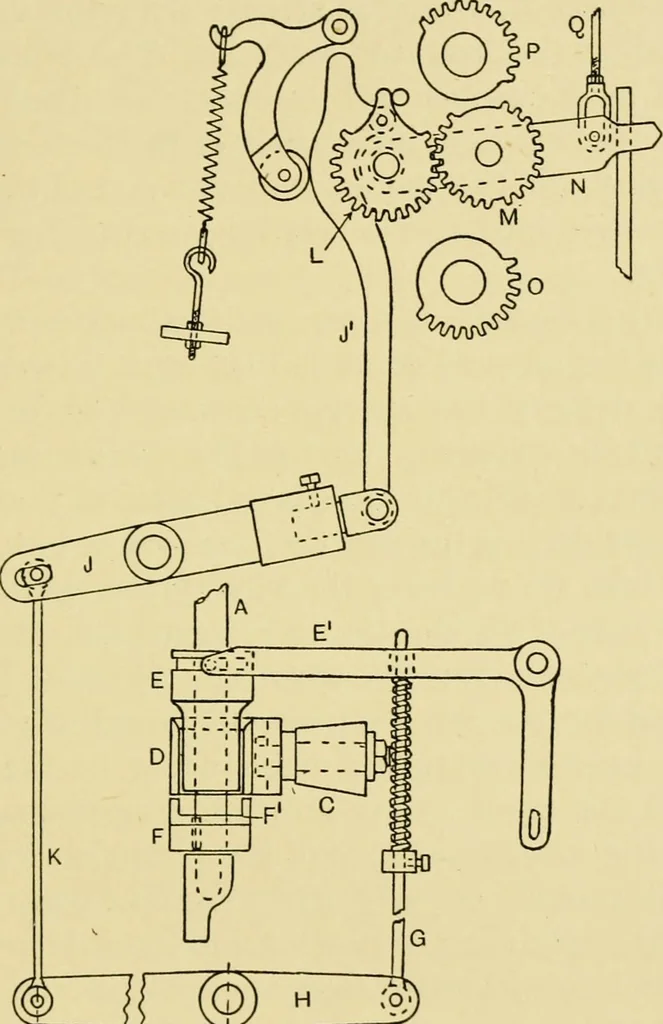

or the pick-ing stick A^. The brackets E and D, also the cone C,are drawn back into position by means of the spring G.The upright shaft is drawn back after picking by thespring H. Assuming that the bracket has been loweredso that the wings engage with the recesses in the boss F,the cone that is… … -13: *l Fig. 32. The principle adopted is exactly the same as that em-ployed for controlling the movement of the boxes inthis loom, to which subsequent reference will be made. * The parts G to P inclusive are shown in side elevation. A to Fare in end elevation. 116 TAPPET AND DOBBY LOOMS The fork…
