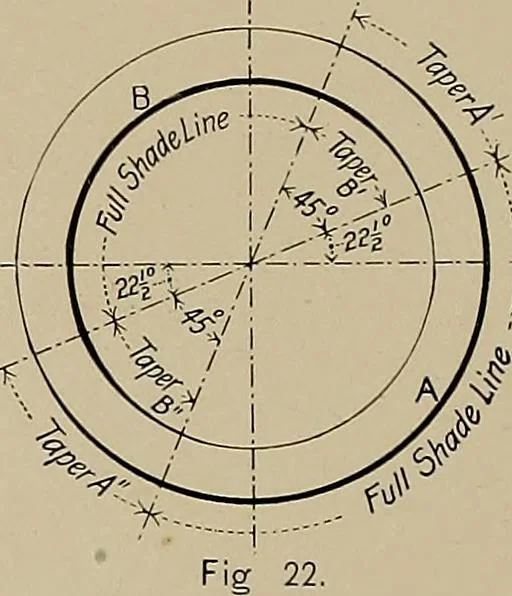

te side so treated. At the same time, as the readerwill perceive, something seems to be amiss with that shading. Letus therefore deviate just a trifle from the oithodox rule and applythe remedy : Add one-half or one-third the regular width of a shadeline to the lower left hand outline of the square… … The shading of circles is generally effected by shifting centers or moving the points of the compasses a trifle from the center of such figure, the distance being equal to the thickness of the desired shade line, and inking in the shading always in a direction from left to right. If the new center…
