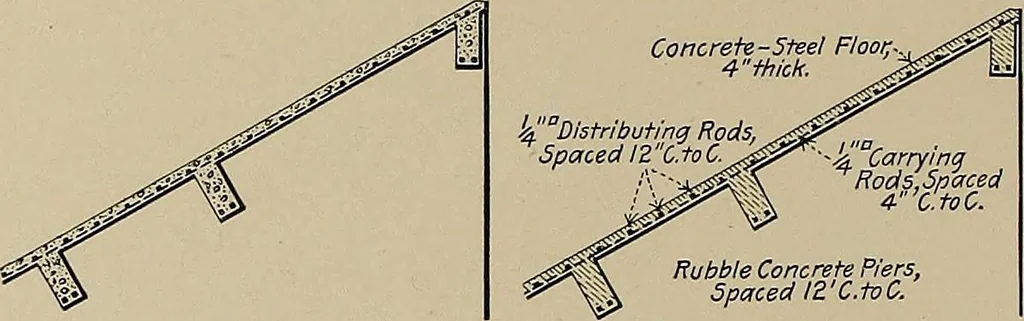

shaded, so as to avoid any of its compounds, such as sand andgravel, being mistaken for concrete. The symbol for sand can … A- b. Fig. 48. with a little practice be evenly placed by connecting groups ofdotted circular arcs, as shown in Fig. 49. Water in repose (Plate III.) may be represented in two ways, as the exigencies of the case may demand : by graded .._ solid lines, decreasing in strength as their…
