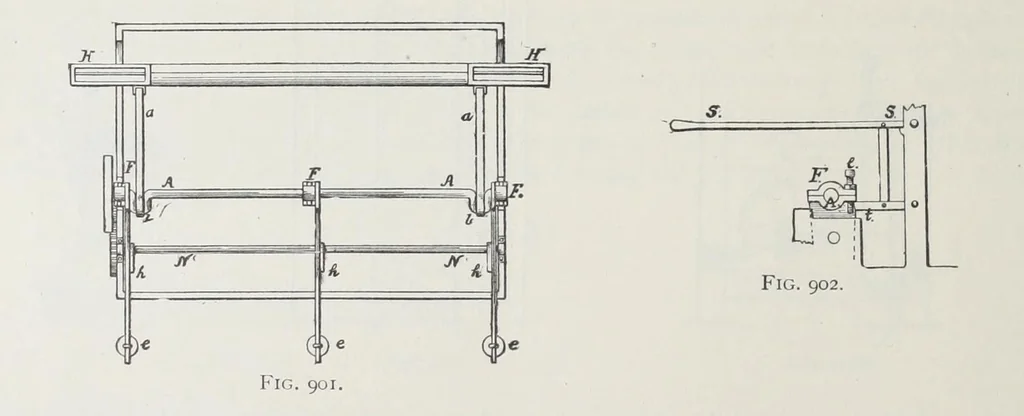

olving drives to and fro the lay H by means of the rods a, com- municating with the cranks b l>, and thus drives the picks partially up at each revolution, when it is thrown back, as illustrated in Fig. 899. In order, however, to produce the terry loop the entire shaft A is, after two picks, thrown… … The shaft A, when it is desired that the loop shall be formed at every third pick, is arranged to revolve by a proper adjustment of the gearing three times while the cam shaft N revolves once. When the cams h of the cam-shaft N are in any position other than an upright position, the lower arm E' is…
