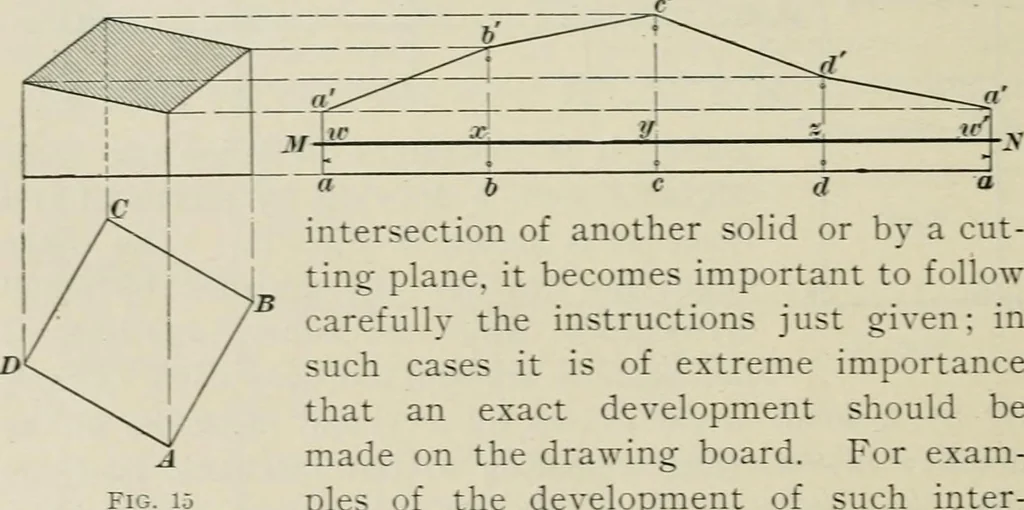

- be called on from time to time to lay out. Thesedrawings, when inked in, should be completed in the man-ner shown in the illustrations. 18. Development of Intersected Solids.—In caseswhere the parallel lines of a solid are interrupted by the … b c d intersection of another solid or by a cut-ting plane, it becomes important to followcarefully the instructions just given; insuch cases it is of extreme importancethat an exact development should bemade on the drawing board. For exam-ples of. the development of such inter-sected solids, we…
