Treatise covering operation, defects and remedies of the locomotive, Westinghouse and New York air-brake, also questions and answers to first, second and third year's progressive examinations (1917)
MacDonald, J. R. [from old catalog] · [Chicago] The author · leaf 257

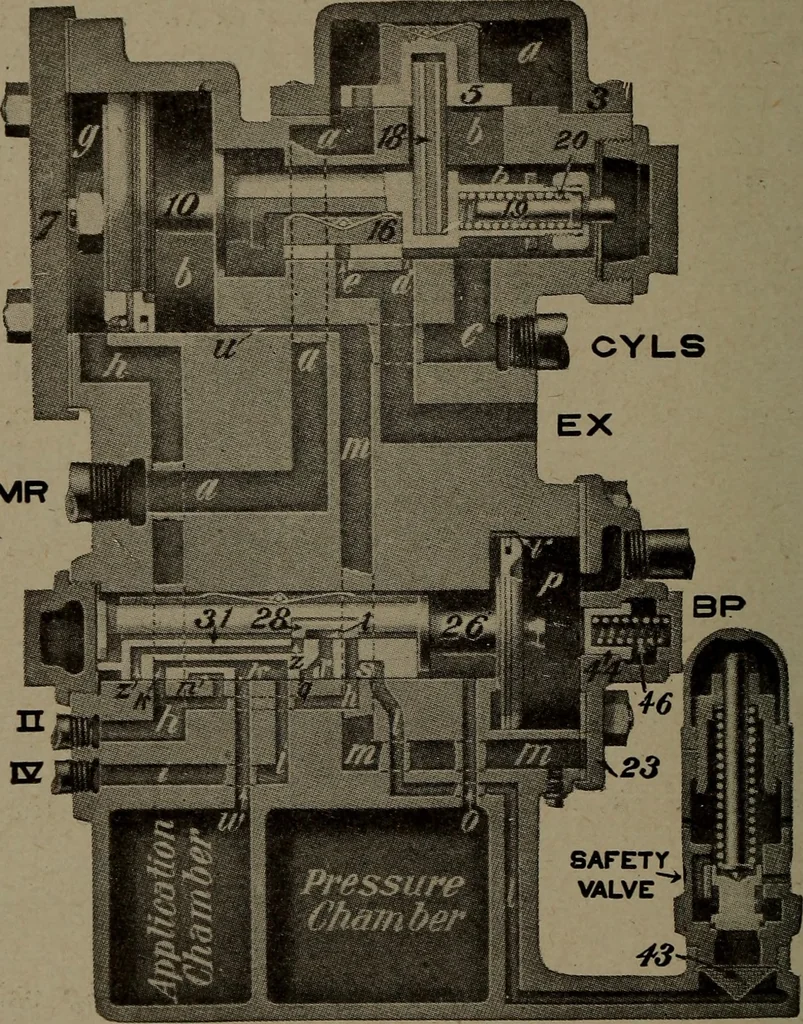

of the distributing valve inrelease and charging position t A. Brake pipe air enters the valve at the point markedBP, figure 33, then into chamber P, passing through thefeed groove V, over the top of the equalizing piston 26into the chamber above the slide valve 31, thence throughport 0, charging… … Fig. 33. Eelease, Automatic of Independent Connections MR—Main Reservoir Pipe; IV—Distributing Valve Re-lease Pipe ; II—Application Cylinder Pipe ; CYLS—Brake Cylinder Pipe; BP—Brake Pipe WESTINGHOUSE AIR BRAKE 255 ber A above the application valve 5; it will be seen thatmain reservoir pressure…
Locomotives · Westinghouse air-brake · New York air-brake
