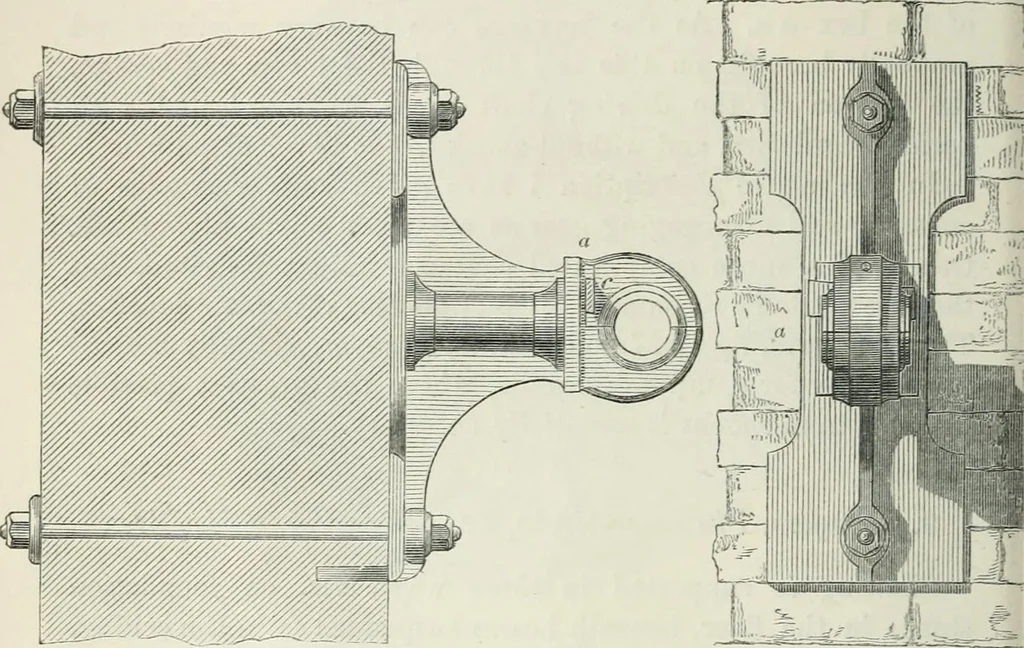

94 ON MACHINEET OF TKAXSMISSIOX. hollow and kept full of grease, so as to secure the most perfectlubrication of the journal of the shaft. Fig. 230 shows a pedestal for bolting to a wall, the chief Fi. 230. … difference being that the cap is now fixed on its inner side b} awedge or cotter (c). In this figure a shell cap a is shown. Ifthe pull is upwards, and two brasses be required, lugs have tobe added to the extremity of the pedestal and cap for boltingthe two together. There are various ways of…
