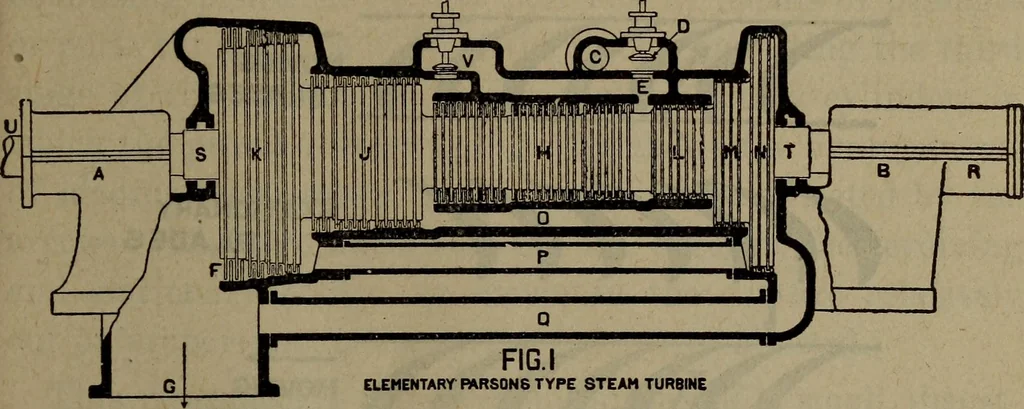

Fig. 276the allis-chalmers steam turbine Allis-Chalmers Steam Turbine 651 pressure at Y. Valve Y is a by-pass valve to allow of livesteam being admitted to the second stage of the cylinderin case of a sudden overload. This by-pass valve is theequivalent of the by-pass valve used to admit live steam… … CLEHENTARY Rl^RS0N8 TYPE STEAM TURBINE Fig. 277 the low pressure cylinder of a compound reciprocating en-gine. Valve V is arranged to be operated^ either by thegovernor or by hand^ as the conditions may require. Fric-
