Twentieth century hand-book for steam engineers and electricians with questions and answers; a practical non-technical treatise .. (1913)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & company · leaf 678

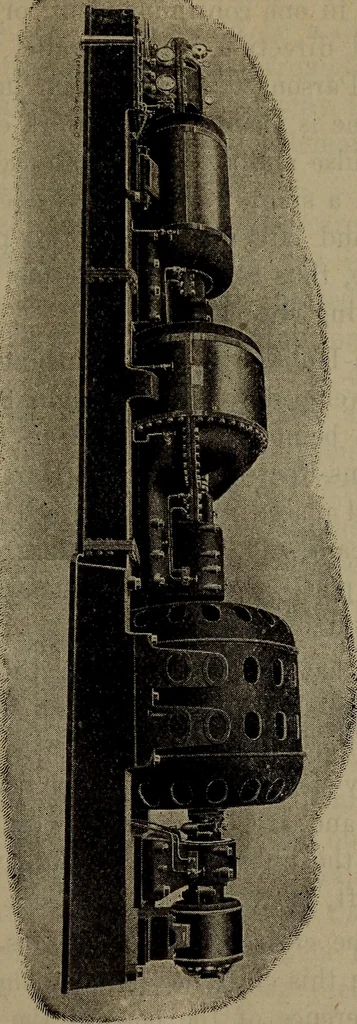

ades, as well asrevolving blades in a turbine. The actual pressure exerted upon any single blade in aturbine is in reality very light. Take, for example, a 300K. W. Westinghouse turbine. There are altogether in amachine of this size 31,073 blades, of which 16,095 are mov-ing blades. The pressure… … Fig. 285 HAMILTON-HOLZWARTH STEAM TURBINE The Hamilton-Holzwarth steam turbine resembles inmany respects the Westinghouse-Parsons turbine, prominent •66 Steam Engineering of which is that it is a full stroke turbine; that is^ the steamflows through it in one continnous belt^ or veil in a screwline^…
