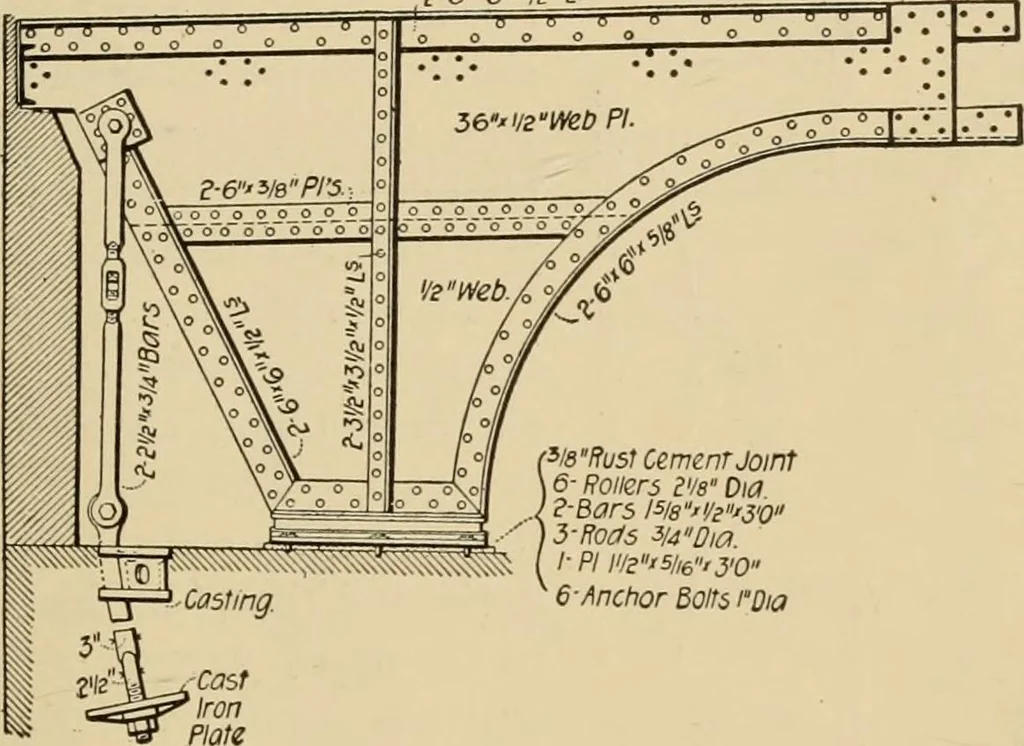

ed tiles locked or anchored to it, and all jointsare very carefully pointed so as to completely seal up the steel.This gives the bridge the effect of a series of longitudinal andtransverse solid masonry arches, sprung from the tops ofmasonry columns, and carrying the short-span transverse… … i/BIfusr Cemenr Joint 6- Rollers ivs Did?-Bcirs /s/ai/ef30i3-lfoas ii4Dia/■ PI l/e5/,e-,j06-Anchor Bolt$iDia Abutment Ends of Girders and Anchorages. the dead load deflection, was framed into the girders. A simi-lar viaduct was built at Harrison Street. Bc7iton Boulevard. — Benton Boulevard, Kansas…
