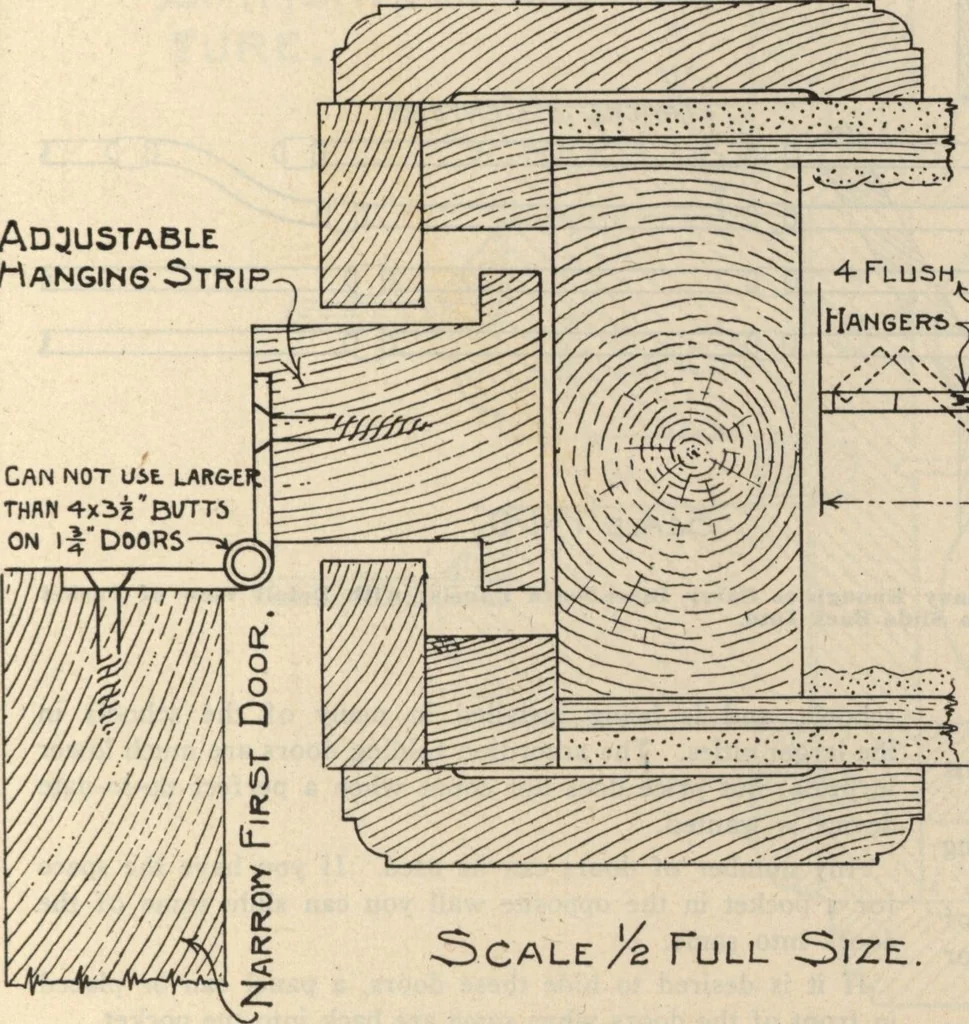

regular pair of hinged doors witha soffit closing up the slot in the top jamb and bolts, lock,knob and flush cup handle. Now, to obtain a good workmanlike job of folding partitiondoors, the writer suggests the use of the adjustable hangingstrip as shown in detail to left. If the doors shrink the… … AdjustableHanging Strip Can not U5t large? : THAN<rx3i*BinT5ON INDOORS 4 Flush Bolts aj Botto^—No Bolts aj Top^ w ^/-Sliding Door Lockand cup escutcheons.15 0 I 111 i II Scale: irE-9uAi_^ l-0 Accordion Folding Door*—Directions for Ordering:Track should lie as Long as Opening is Wide.…
