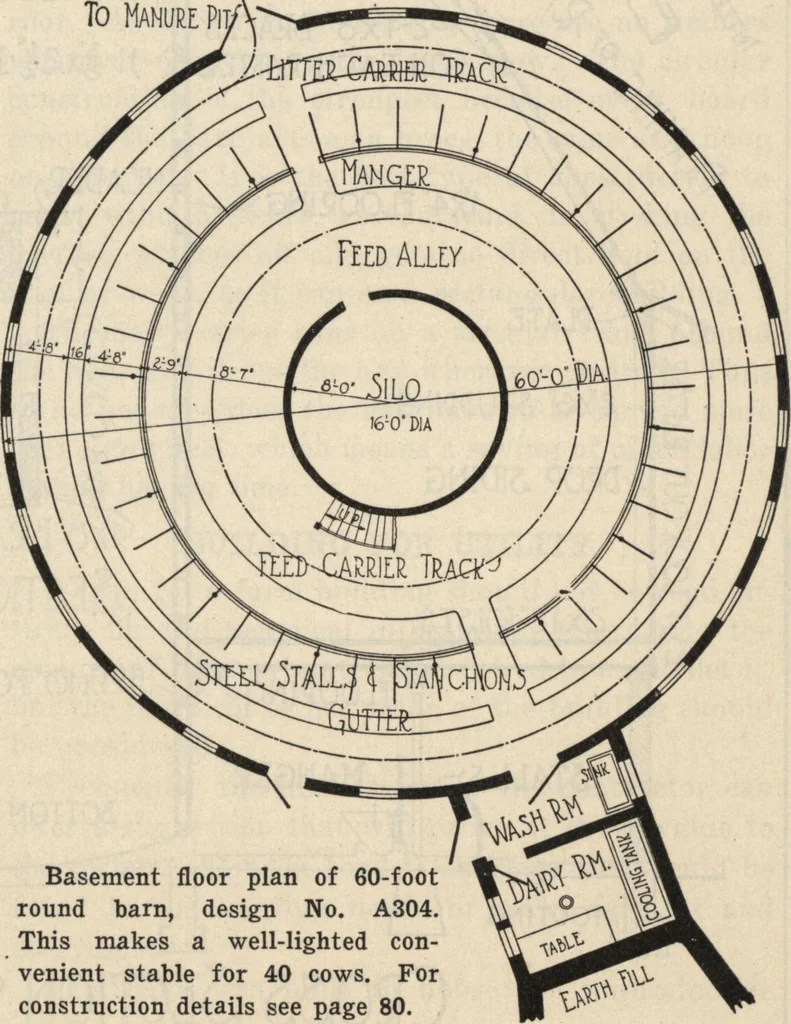

mbinationof three 12-foot and one 16-foot piece wTould workto the best advantage. Nailing the Girts. These girts should be made of soft wood of goodquality. A good quality of shortleaf pine or whitepine is recommended. After the girts are completethey should be nailed from the inner side with… … Basement floor plan of 60-footround barn, design No. A304.This makes a well-lighted con-venient stable for 40 cows. Forconstruction details see page 80. 80 HOW TO READ PLANS .„ .._ ™niMr THE 6 OUTER BATTS OF EACH WOOD BAND ARE CONTINUOUS ,. 3, j.tAttc ? ACROSS DOOR OPENINq.) ALLOW % BETWEEN END OF…
