[Gould, Lucius D.], b. 1814. [from old catalog] · New York, W.T. Comstock · leaf 61

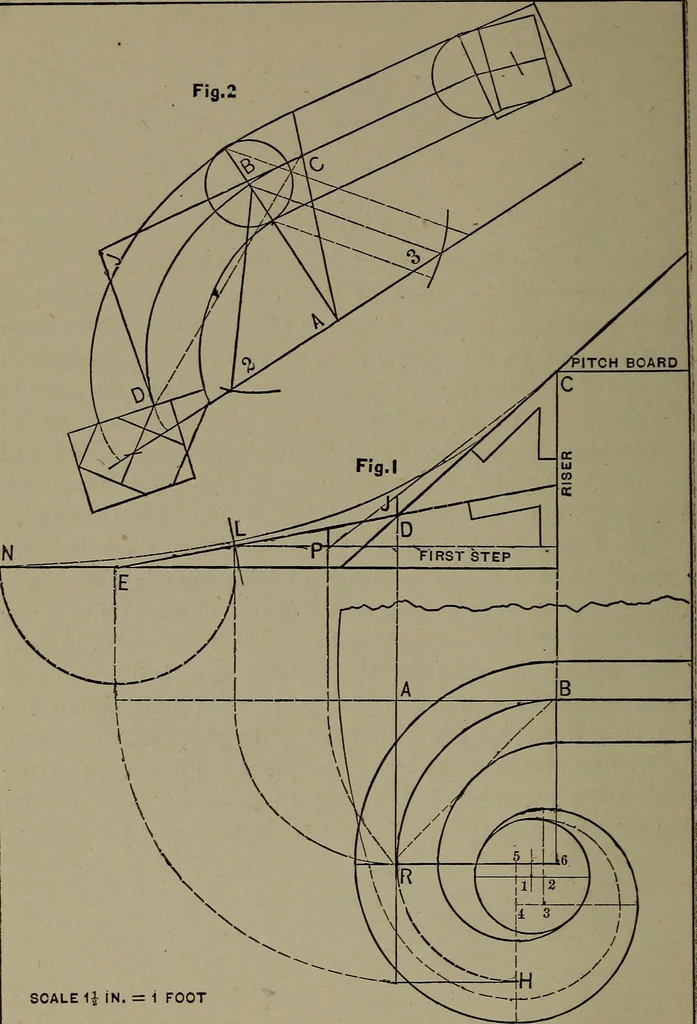

with pins in the points,by the use of thread or cord and pencil, describe the centrecurve ; set off each way from J equal half the width of rail;from the points describe the outside and inside curvesextend B C to L equal S P, Fig. 2 ; then L D equals thelength of lower wreath, and C D the length of… … SCALE H IN. = i FOOT STAIR BUILDING. 57 PLATE XXVII Exhibits the plan for a scroll at the starting of the stairs. To draw the scroll : Describe the eye one inch wider thanthe rail ; divide the diameter into four equal parts ; sub-divide, as shown by the figures, for the points to describethe…
Stair building
