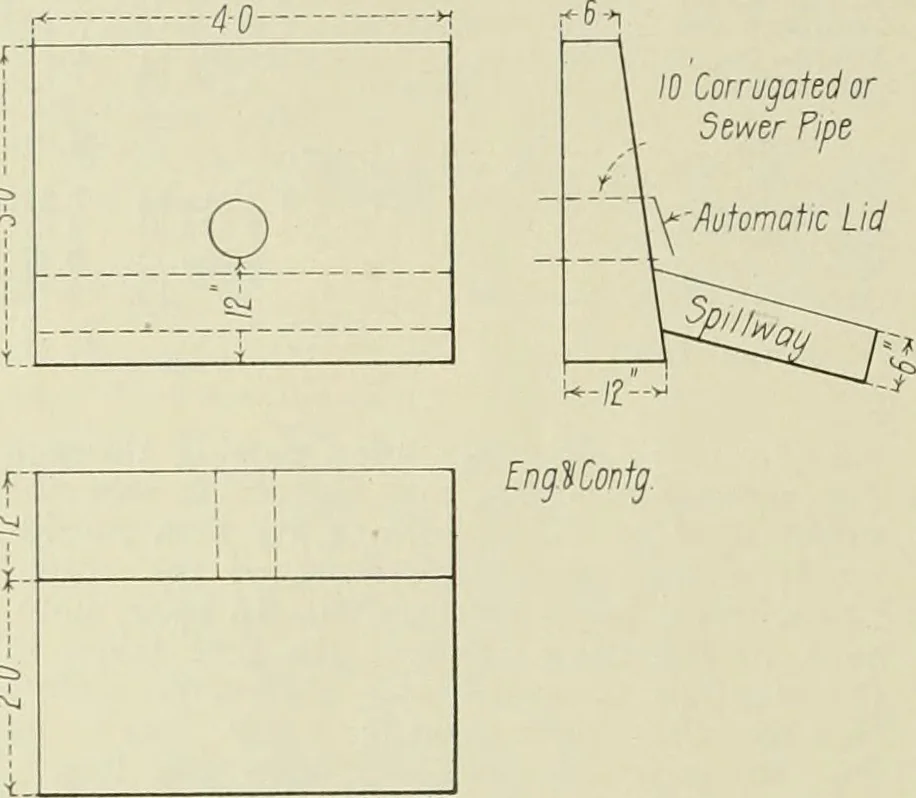

the soil at the outlet. For alltile outlets whether consisting of a naturaldraw or channel or an open ditch it is prefer-able to locate the outlet portion of the lineto one side of the overflow watercourse asfar as topographical limits and straightcourses will permit because of the… … Fig. 1—Design of Outlet for Tile Under12 Inches Diameter. the tile line and wash the wall, tile and largequantities of earth into the outlet channel. Incases where open ditches serve as outletscombination flood water and tile outlets maybe constructed so designed as to receive theoverflow waters…
