Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 435

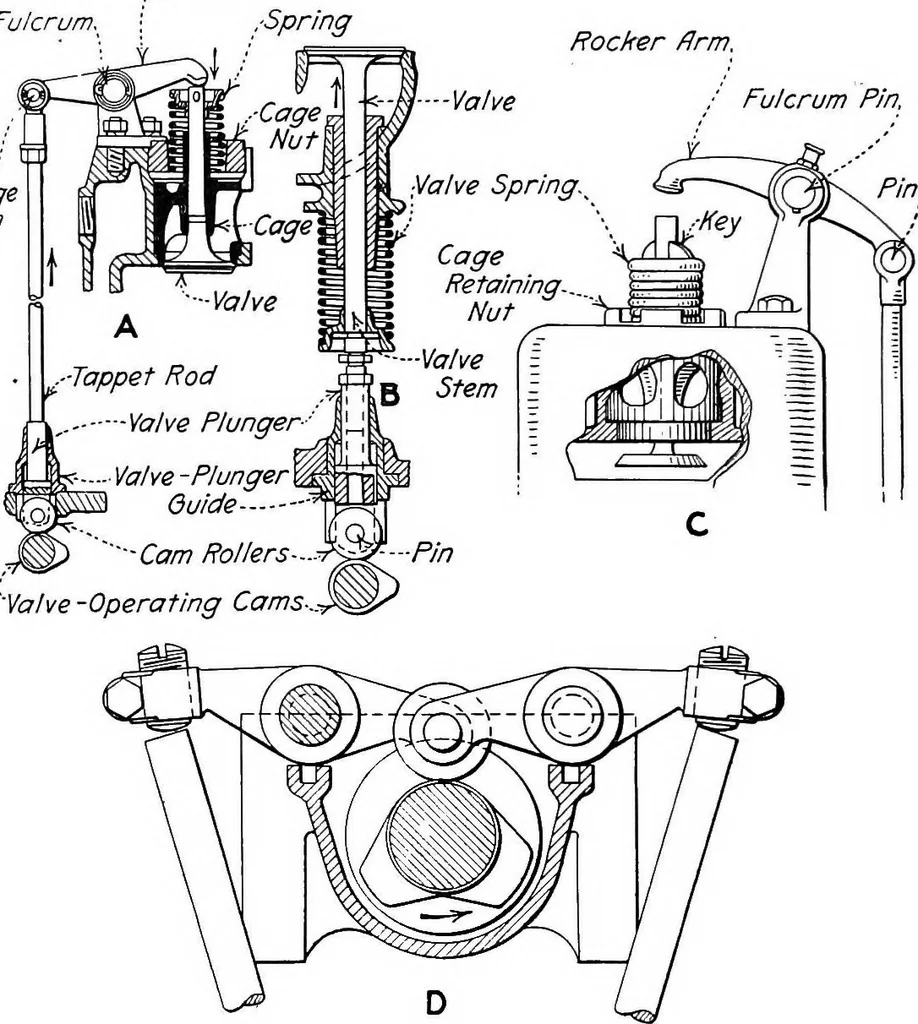

orm is that shown at B, and even onthis there are five points where lost motion may be noted.The periphery of the valve opening cam or roller may beworn, though this is not likely unless the roller or cam has 434 Aviation Engines been inadvertently left soft. The pin which acts as abearing for the… … Fig. 185.—Outlining Points in Valve Operating Mechanism Where Depre-ciation is Apt to Exist. guide casting, and there may also be excessive clearancebetween the top of the plunger and the valve stem. On the form shown at A, there are several parts addedto those indicated at B. A walking beam or…
