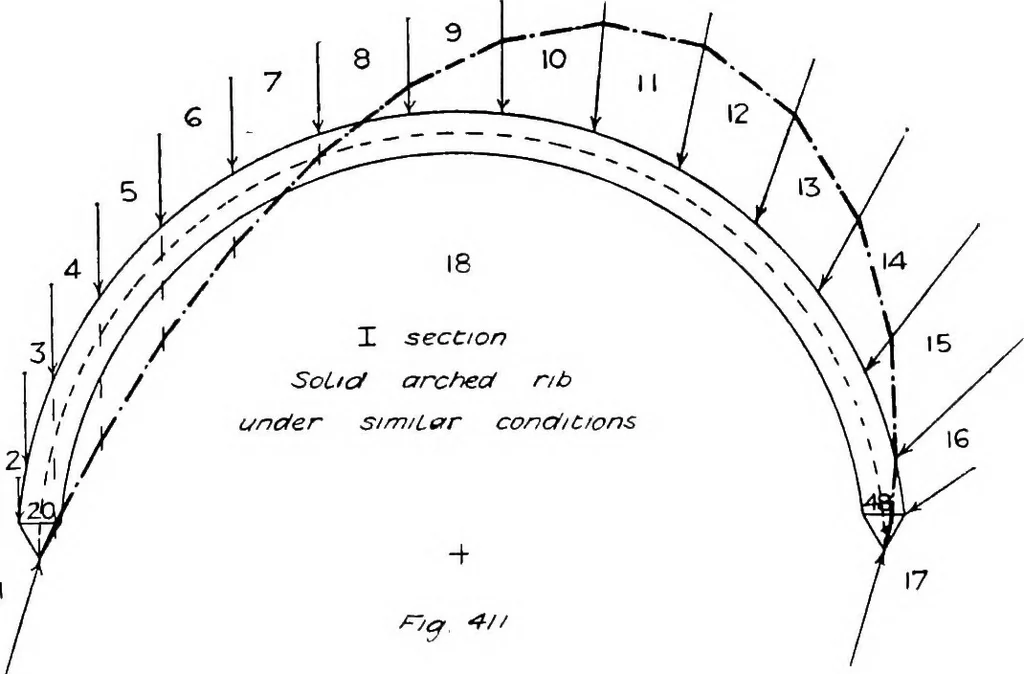

structural and external loads, and set down the load line, Fig. 412.Join the extremities and bisect to give point 18, this being permissiblefor the reasons described above. Then draw a horizontal line bothways through point 18, and from point 2 draw a line parallel with 2-20 … (Fig. 411), and from point 16 a line parallel with 16-48 (Fig. 411), bisect20-4B in Fig. 412, giving approximate position of pole for obtainingthe best curve of thrust. Draw the vectors from pole to all the pointson load line, and parallel with these draw the curve of thrust in Fig.411. Professor…
