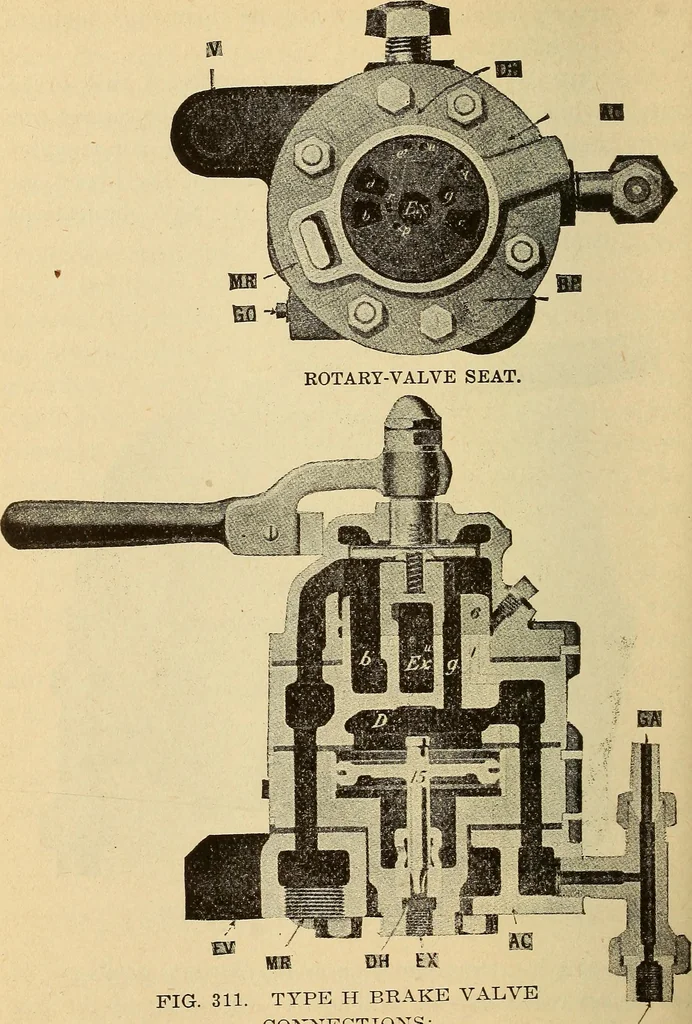

FIG. 310. TYPE H BRAKE VALVE Fig. 312 is a top view, showing the six positions ofthe brake-valve handle, which are, beginning at the ex-treme left. Release, Running, Holding, Lap, Service andEmergency. 698 LOCOMOTIVE ENGINEERING … FIG. 311. mk BH EX TYPE H BRAKE VALVE PV COXXECTIOXS:-Feed-Valve Pipe; MR—Main-Reservoir Pipe; GO—To Gov-ernor- DH—Double Heading- Pipe; EX—Exhaust; AC—Appli-cation-Chamber Pipe; BP-Brake Pipe; GA-Duplex AirGauge; ER—Equalizing Reservoir ET BRAKE EQUIPMENT 699 Fig. 313 shows two views of this valve…
