Easy steps in architecture and architectural drawing .. (1915)
Hodgson, Frederick Thomas, 1836- [from old catalog] · Chicago, Ill., Printed by F. J. Drake & co. · leaf 506

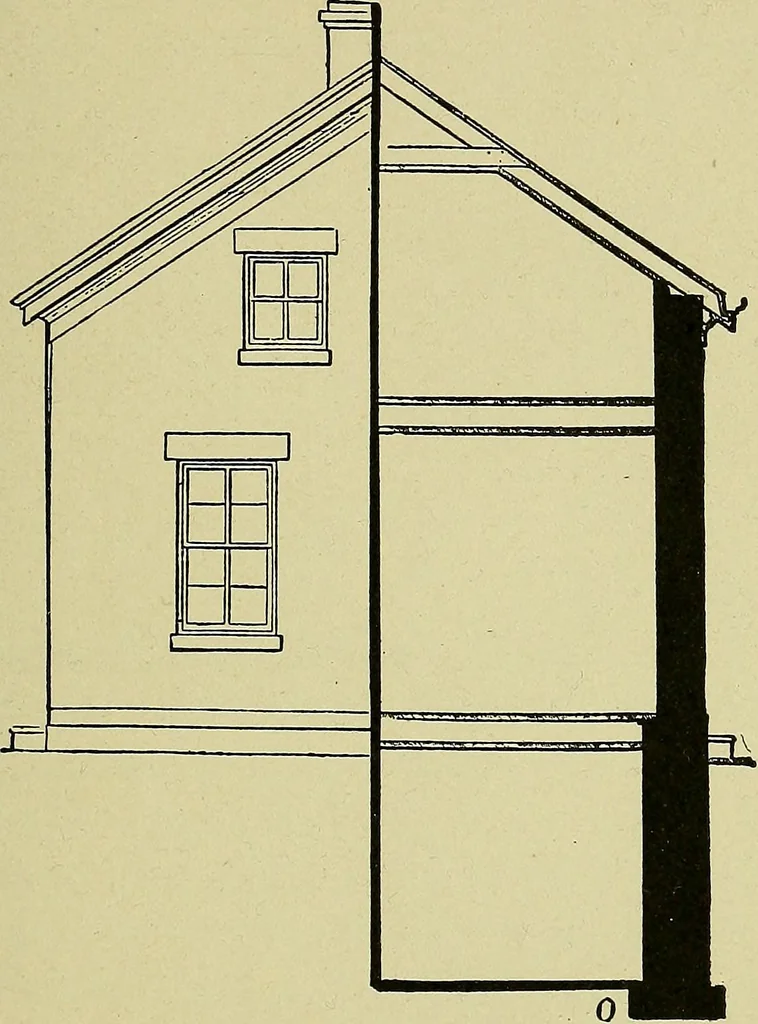

siiw vm the doors are steps. il2 ARCHITECTURAL DRAWING SELF TAUGHT ARCHITECTURAL DRAWING SELF TAUGHT 113 ings are 13-16 inch, or 3 feet 3 in. Measure offthe partitions and lay off to sizes as figured. Becareful to have the chimneys and fireplaces, R. … Fig. 104. End Elevation and Section. R. S., directly over those in the cellar. Thestairs in cellar are directly under the stairs asshown in this plan. The projections shown atthe doors are steps. 14 ARCHITECTURAL DRAWING SELF TAUGHT The plan shown at Fig. 102 -is for the atticstory. A part of the…
