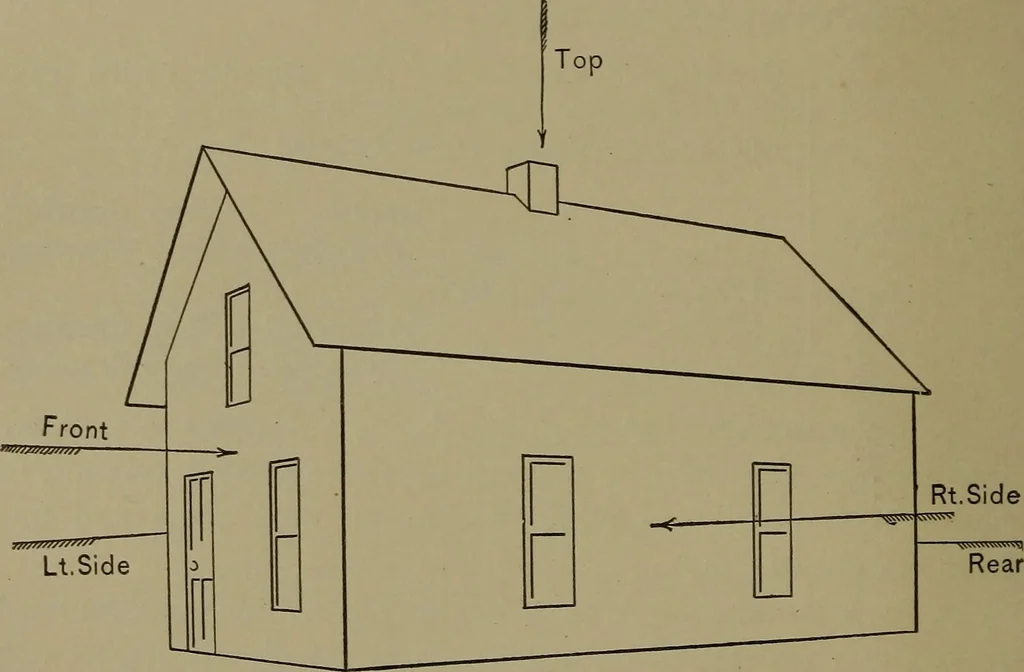

llel or perpen-dicular to one another; furthermore, two adjacent edges of thesame face are at right angles to each other, and opposite edgesare parallel; hence in the me hanical drawing of that face thetwo adjacent lines must form a right angle and opposite linesmust be parallel. From this it is… … Fig. 3.A Perspective Drawing. drawing of every face, or side, be constructed, for, in additionto the relation of the lines of an object, the faces of that objectbear a definite relation to one another. To depict the relationof the faces of an object they are referred to one face calledthe front…
