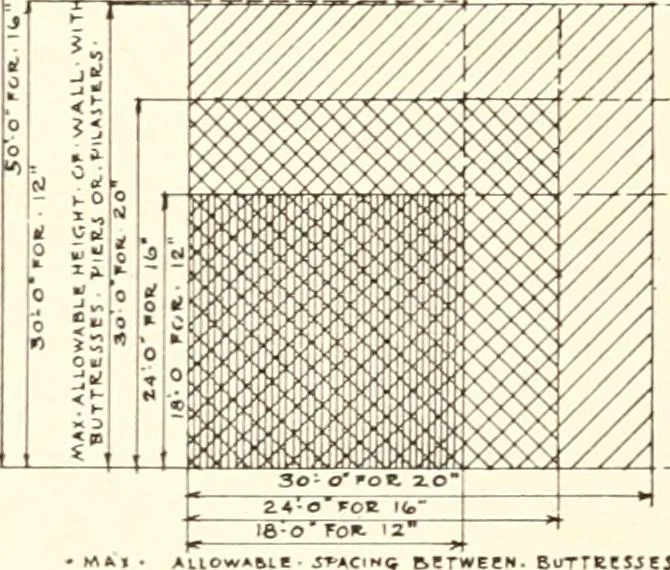

ith iron anchors placedopposite one another, secured to the samejoists or girders in pairs, every seven feetor less of length of said walls. Where saidjoists or girders are of such length that itis not practicable to make them of one piece,then the several pieces shall be joined ateach splice or… … BurrEESiej rig-. 18. Explanatorj diagram of maximum allowable heightspacing and leng^th of walls with or without but-tresses, piers or pilasters. area. The spikes, bolts or screws, securingsaid anchors and tie plates, shall be of suchnumber and size as to transmit the tensilestrain which the anchor…
