Hicks' builders' guide : comprising an easy, practical system of estimating material and labor for carpenters, contractors and builders .. (1910)
Hicks, Isaac Perry, 1856- · New York : David Williams Company · leaf 129

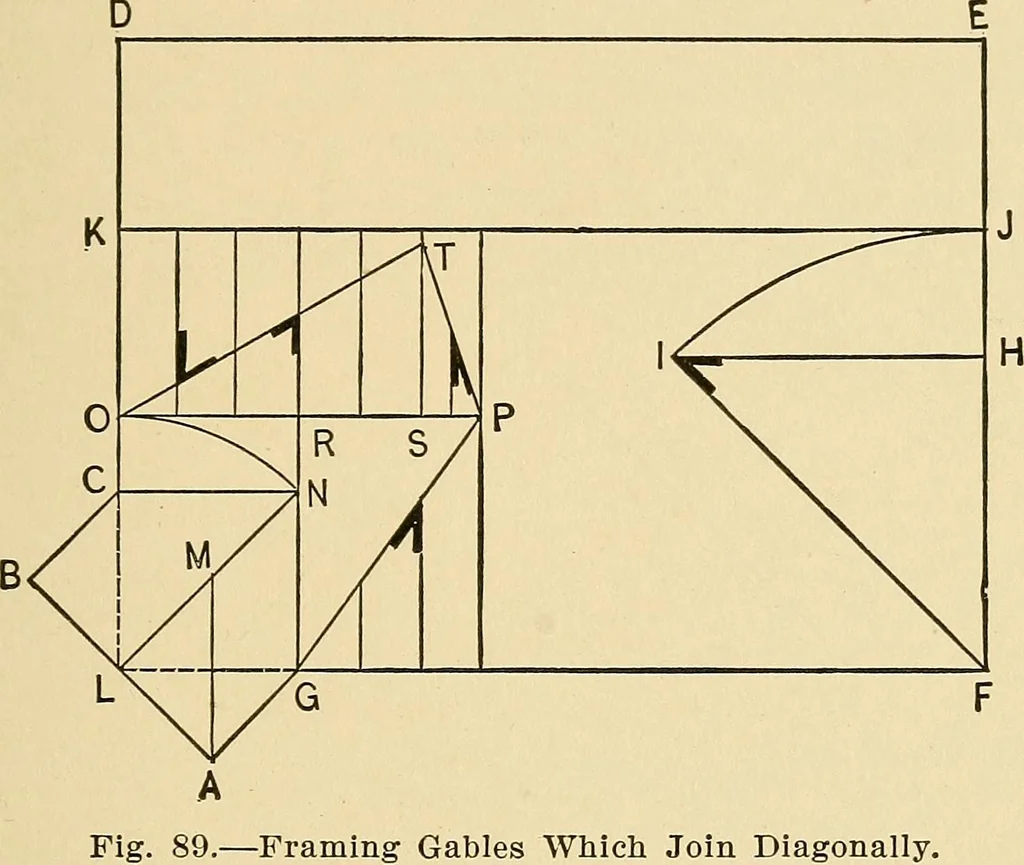

Fig. 88.—Diagram Illustrating the Methodof Obtaining the Lengths and Cuts ofall the Rafters in any Regular Polygon. its run represented by L C. THE BUILDERS GUIDE. 127 length of main common rafter up to the point wherethe left valley starts. Transfer L N to L O, whichis the starting point of the… … Framing Gables Which Join Diagonally. rise of the common rafter on the corner gable to S,which is the same as L M. From S square up the length of the common rafterto T, which is the same distance as A M. ConnectT with O for the length and position of the left valley.Connect T with P for the length…
