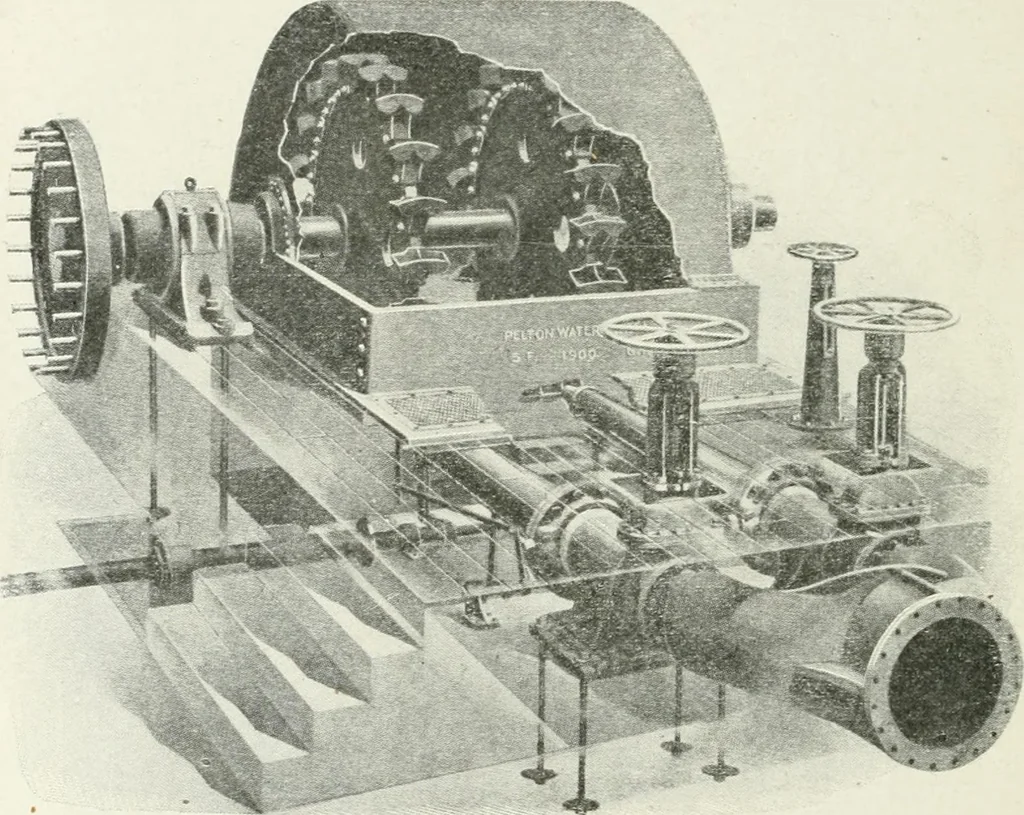

)posite the direction ofmotion, as in Fig. 41, Figs. 42 and 43 show the usual method of attaching the bucketsto the wheel; it is clear that in these designs one or more bucketsmay be very easily and quickly removed and replaced wlien this is … Fig. 45. A 3,000-Horse-Power Double Unit, 500 Feet Head, for Direct Connection to Generator. rendered necessary by reason of Avear or breakage. The buckets inFig. 42 are of the Peltoii type. In the Dohle vane, Fig. 43, the outer portion of the lip is dis-pensed with for the purpose of preventing…
