Illustrated catalogue and general description of improved machine tools for working metal (1899)
Sellers, William, & co. [from old catalog] · Philadephia, Levytype company · leaf 178

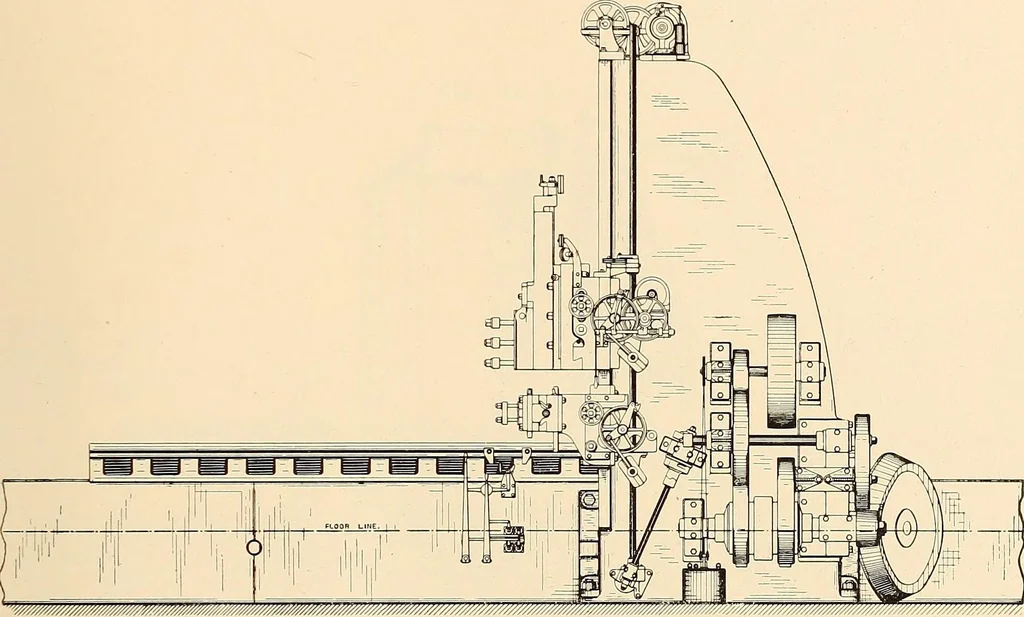

head is fixed in height above the table.The saddles are unusually massive, and the steel slide rests are set over to bringthe tools close together. Each has its own screw and vertical feed rod. A pumpand circulating system are provided to insure a perfect and continuors lubricationof the V… … 144 X 120 (OR 144) PLANING MACHINE—to Plane 25 Ft. Long. This ponderous machine is especially designed for the heaviest work inarmor plate or steel forgings. It is provided with iivo saddles 45 long on thecross rail, which is 42 deep. Tlie swivel tool slides on the saddles are 6 ft. longby 20 wide…
