Hartford Steam Boiler Inspection and Insurance Company · Hartford, Ct. : Hartford Steam Boiler Inspection and Insurance Co · leaf 170

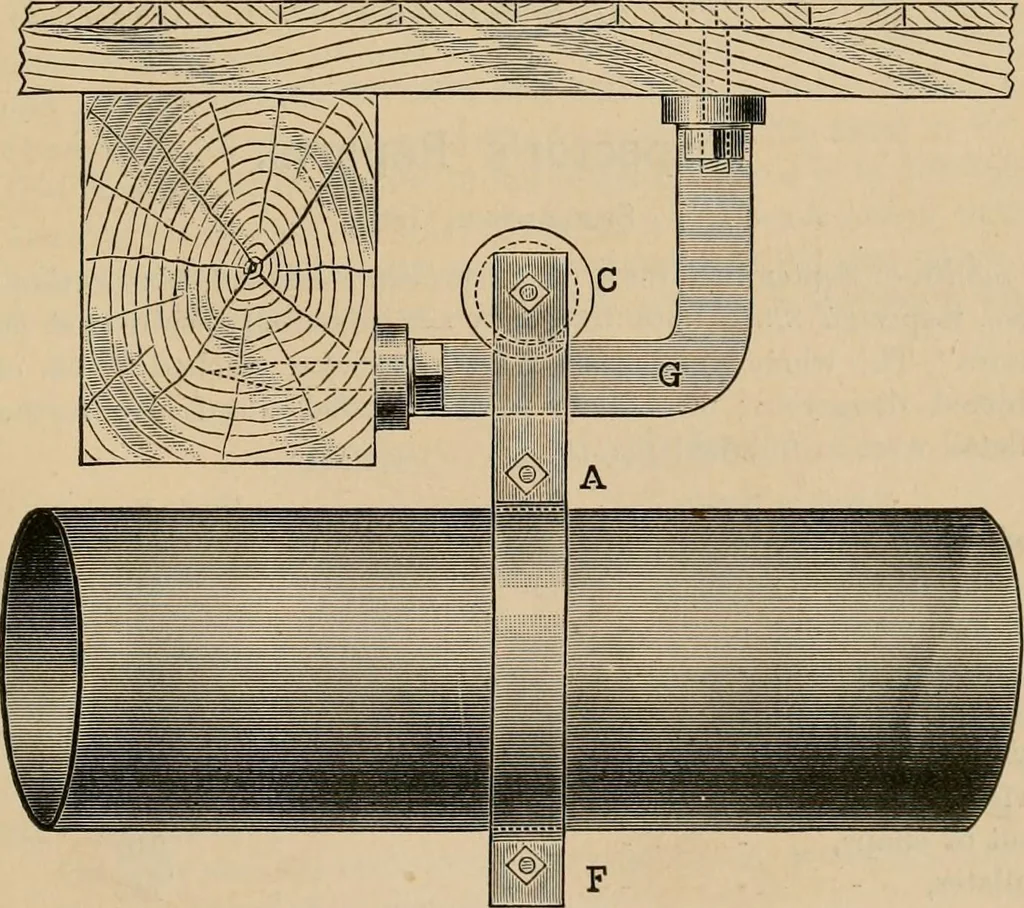

Fig. 6. Fig. 2 is a side view and Fig. 3 an end view of one of the cheapest and best formsof hanger where the motion of the pijje is not very great. Two clips are made of 3 X i … Fig. 8. flat iron bent around to fit the pipe, so that when the nuts on the bolts at A and F arescrewed up the pipe is tightly gripped. The upper ends of the clips are not broughttogether but are left a few inches apart and long enough to enable the roll C to be ^g4 THE LOCOMOTIVE. [November,…
Locomotives · Steam-boiler explosions
