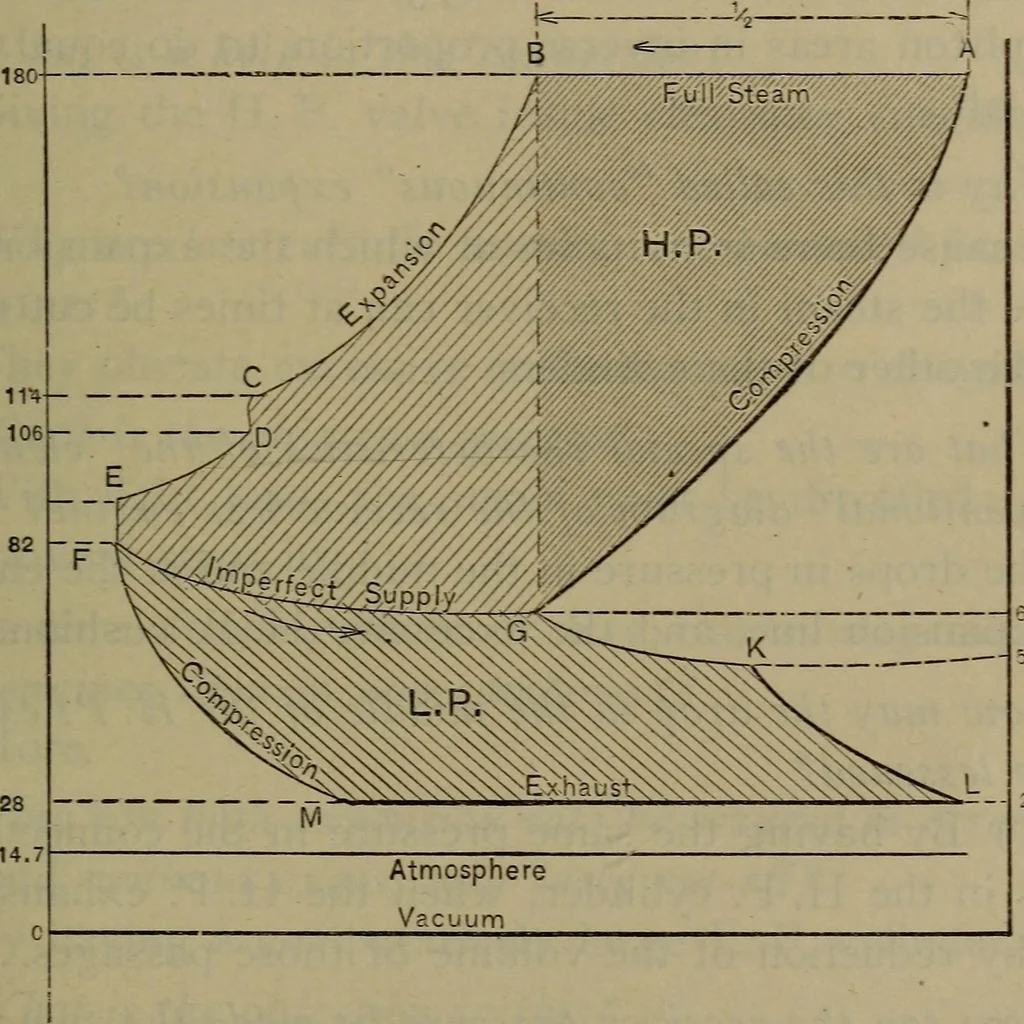

) type. Q. Give a conventionalized elementary or explanatoryindicator card of a receiverless compound? NON-RECEIVER COMPOUNDS. 511 A. Supposing that the pistons are attached to the samecrosshead and the conditions as laid down for the receiver en-gine in preceding paragraphs, we have a diagram… … Fig. 324. Theoretical Expansion Diagram. necting passages (which constitute in effect a miniature re-ceiver) ; from D to E further expansion (this time in the H. P.cylinder plus the passage space) ; at E, opening of the L. P.valve for admission, hence further drop in pressure owing toinsufficient…
