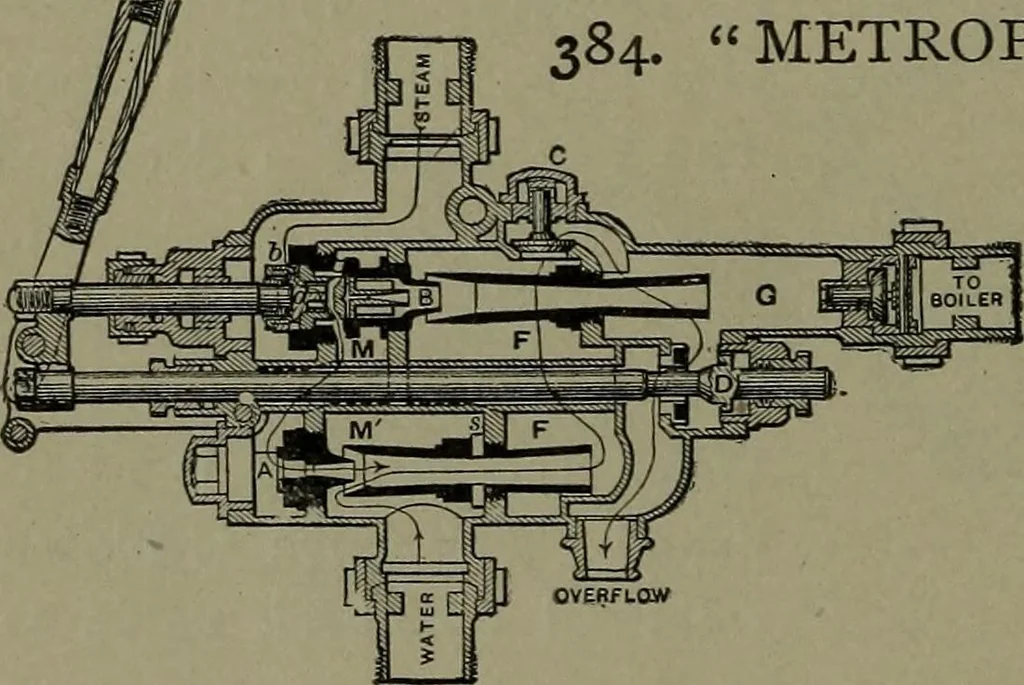

handle opens thefirst section of a double-beatvalve at b^ and gives steam tothe lifting nozzle A; the over-flow passing freely through thecheck valve C, and the openvalve at D. A further move-ment of the handle opens the second section of the double-beatsteam valve B, and closes the overflow valve…
